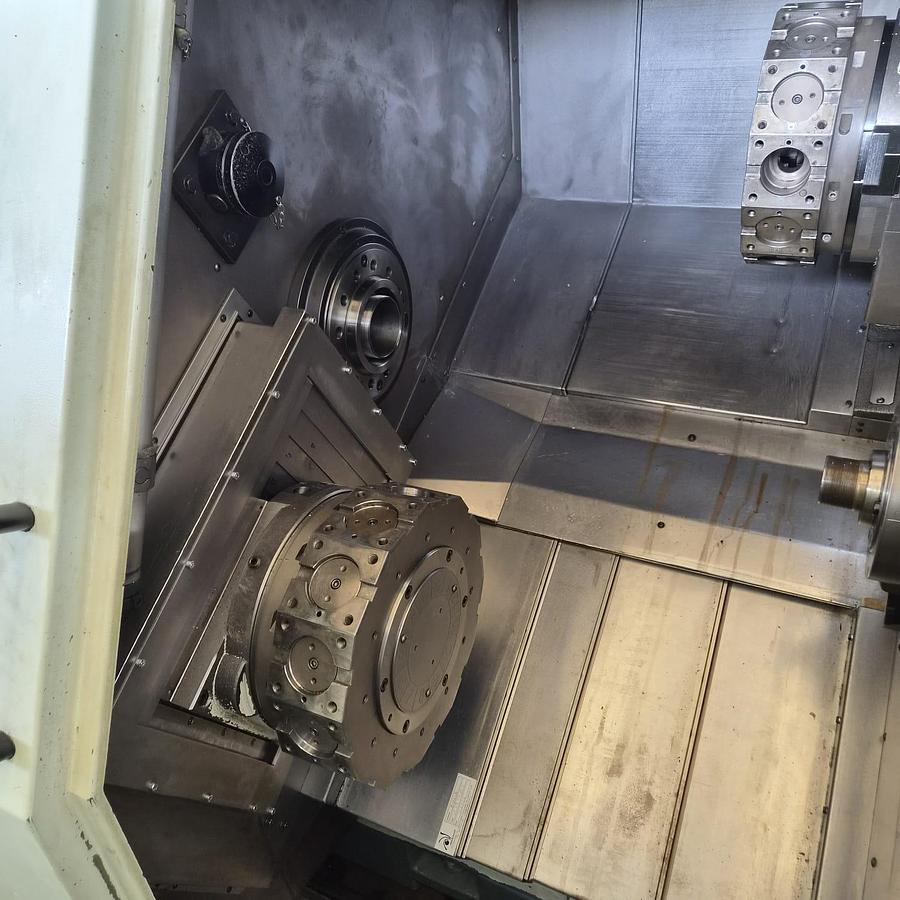

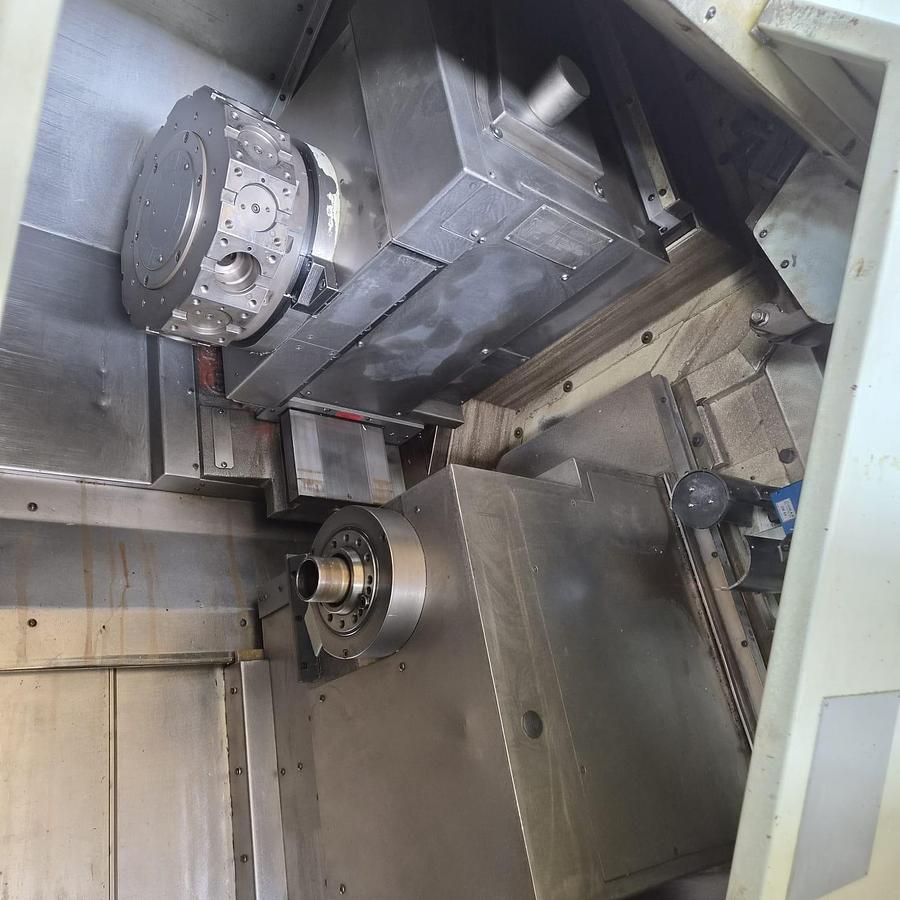

2004 CNC Lathe BIGLIA B 470 YSM
2004 CNC Lathe BIGLIA B 470 YSM
Contact us for price
Location:Urgnano, Italy
Description
The CNC lathe Biglia B 470 YSM, produced in 2004, is a used machine designed for precision machining with CNC control GE Fanuc Series 18i-TB. The main spindle has a variable speed range from 100 to 4000 rpm with an ASA 8'' spindle nose and an 80 mm bore. The capacity to work bar materials reaches a maximum diameter of 67 mm, while for passages up to 200 mm and a maximum workable length of 300 mm. The machine is equipped with 12 positions for the direct CS turret and supports motorized tools. The lathe has travel on the X axis of 158 mm and on the Z axis of 240 mm, with rapid speeds of 12 m/min for X and 20 m/min for Z. The spindle offers a central position at 1050 mm height, and the operating noise level is 73.8 dB. The capacity of the coolant tank is 180 liters with a pump flow rate of 150 L/min and a power of 0.75 kW. With a chip conveyor, the overall dimensions are 4107x2128x2204 mm and the total weight is 7200 kg, supporting intensive operations in industrial environments.
THE MACHINE HAS UNDERGONE THE FOLLOWING INTERVENTIONS:
Spindle line bearing replacement ASA 8
Main spindle thread chuck rework
Replacement of main spindle belts
Brake caliper replacement
Brake disc replacement
Replacement or overhaul of discharge motor
Telescopic replacement Z2/B
Brush wear blade replacement
Replacement of pressure gauges
Air hose replacement
Replacement of hydraulic filters
Hydraulic filter replacement
Relay replacement
Battery replacement
Semaphore replacement
Discharger belt replacement
Replacement of electrovalve caps for hydraulic pistons
Specifications
| Manufacturer | BIGLIA |
| Model | B 470 YSM |
| Year | 2004 |
| Condition | Used |
| Stock Number | 006 |
| CNC: | GE Fanuc Series 18i-TB |
| MAIN SPINDLE CAPACITY | |
| COUNTERMANDREL CAPACITY | |
| Maximum workable diameter from bar: | 45 mm |
| Maximum diameter workable from pickup: | 160 mm |
| Maximum working length: | 200 mm |
| Max rotating diameter: | 160 mm |
| Distance between the two spindle noses: | 690 mm |
| MAIN SPINDLE | |
| COUNTER-SPINDLE | |
| Spindle nose: | ASA 5'' |
| Spindle hole: | 56 |
| Inner diameter of bearings: | 90 mm |
| Self-centering diameter: | 165 mm |
| Clamp group: | DIN 6343 |
| SCREW | |
| Tool shank for external: | 20 x 20 |
| Areamove tool tap holder: | Ø 32 |
| Rotation time (1 position): | 0,2 sec |
| MOTORIZED TOOLS | |
| Number of positions: | 12 |
| Variable rotation range: | 100-3000 rpm. |
| Motor power: | kW 1.1 - 3.7 (25%) |
| MAIN SPINDLE AXES | |
| COUNTERMANDRINO AXES | |
| X-axis run | 158 mm |
| Corsa asse "Z": | 240 mm |
| Corsa asse "Y": | /// |
| Fast axis "X": | 12 m/min |
| Fast axis "Z": | 20 m/min |
| Fast Y-axis | /// |
| ASSE C - CHECKED | |
| Type: | CS (direct) |
| Minimum programmable value: | 0,001° |
| Fast speed: | 80 RPM. |
| COOLANT | |
| Tank capacity: | 180 lt |
| Pump capacity: | 150 lt/min |
| Pump motor power: | kW 0,75 |
| DIMENSIONI-PESO | |
| Footprint with chip conveyor: | 4107x2128x2204h mm |
| Height of the main spindle center: | 1050 mm |
| Weight with shredder conveyor: | 7200 kg |
| Noise: | 73,8 db |
| !!! | The data reported are the result of information in our possession, where possible obtained from the manufacturers, therefore, despite good faith, due to the nature and complexity of the goods, such data may be incomplete and/or inaccurate and in no case may their accuracy be guaranteed and thus constitute any contractual obligation. You are always advised to inspect the goods and request confirmation of the data. |
