2005 CNC Lathe BIGLIA B 650 YS
2005 CNC Lathe BIGLIA B 650 YS
Contact us for price
Location:Urgnano, Italy
Description
The CNC lathe Biglia B 650 YS, manufactured in 2005, is designed for precise and complex machining. This model supports a maximum bar processing diameter of 66 mm and up to 320 mm between centers, with a workable length of 650 mm. The main spindle offers a variable speed from 40 to 4500 rpm with a 3.7 kW motor, while the sub-spindle reaches up to 5000 rpm. The two-axis turret has 12 positions and the motorized tools work up to 4000 rpm. Axis travel is 230 mm (X), 650 mm (Z) and +60/-50 mm (Y). The cooling system has a capacity of 250 liters and a flow rate of 150 l/min. The lathe is completed with accessories such as a Renishaw electronic touch probe and pin chucks, ideal for advanced productions. The lathe dimensions are 4000 x 1900 x 2100 mm, with a weight of 6300 kg, ensuring robustness and reliability. This machine is ideal for those who require efficiency and precision in turning operations.
Specifications
| Manufacturer | BIGLIA |
| Model | B 650 YS |
| Year | 2005 |
| Condition | Used |
| Stock Number | 034 |

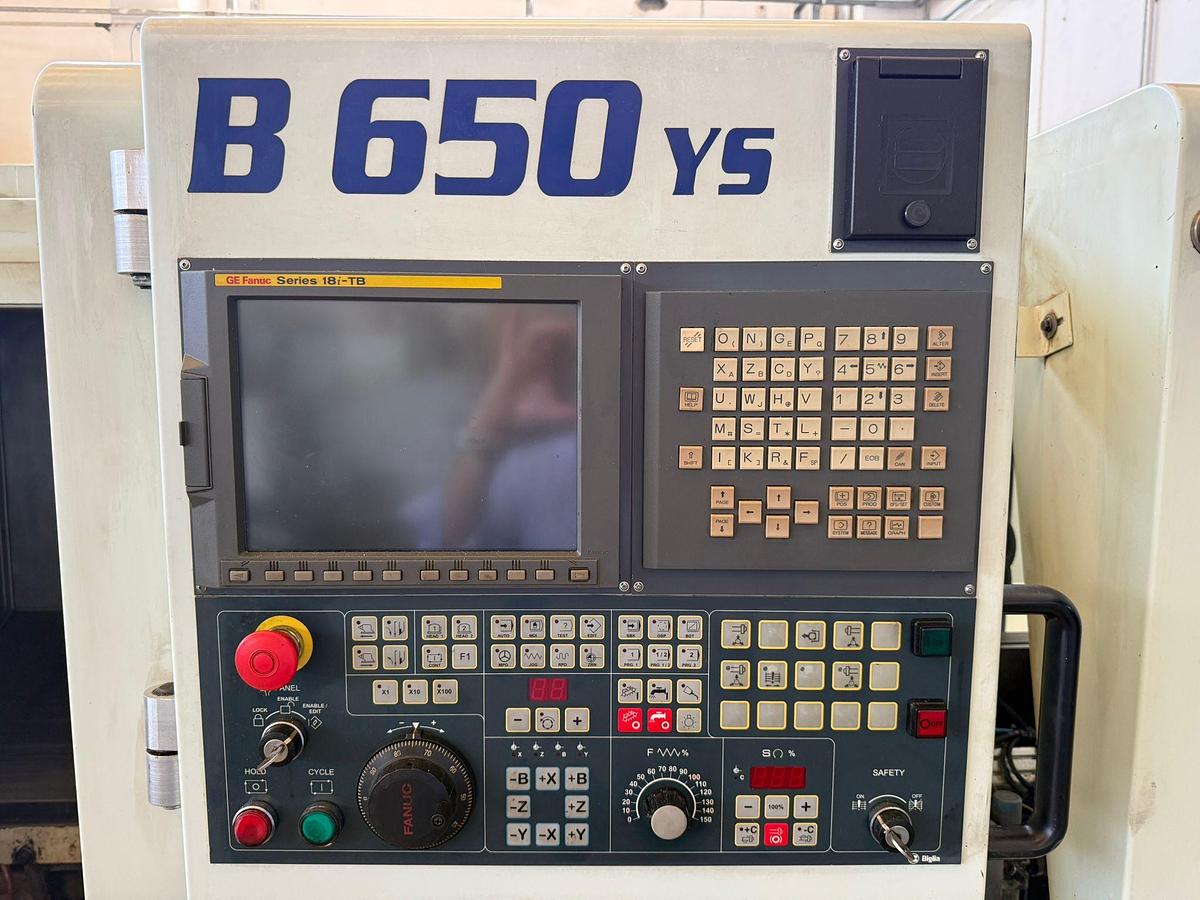

| CNC: | GE Fanuc Series 18i-TB |
| Power-on time: | 83468 h |
| Cutting time: | 31175 h |
| Max. diameter that can be machined from bar: | mm 66 |
| Max. working diameter from pickup: | 320 mm |
| Max. working length: | 650 mm |
| Max. rotating diameter: | 620 mm |

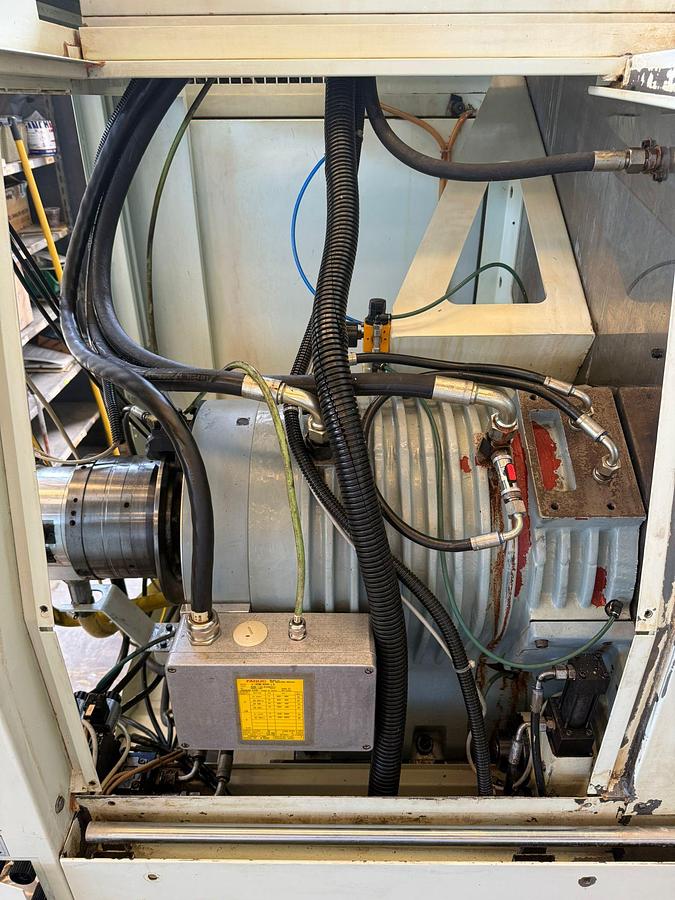

| MAIN SPINDLE - Variable rotation range: | rpm 40 - 4500 |
| Clamp group: | DIN 6343 |

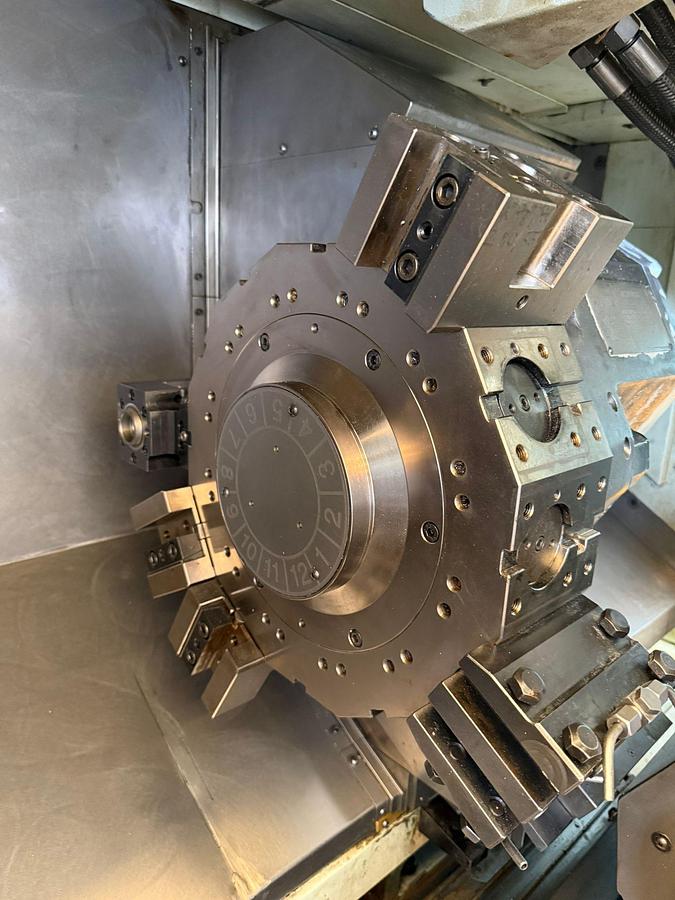

| SCREW-LOCK - Number of positions: | 12 |
| Type: | bidirectional |
| Tool shank for external: | 25 x 25 mm |
| Areamove tool tap holder: | mm ø40 |
| Rotation time (1 position): | sec. 0,1 |
| GUIDES - Axis travel "X" | 230 mm |
| Corsa asse "Z": | 650 mm |
| Corsa asse "Y": | mm +60/-50 |
| Fast axis "X": | m/min. 20 |
| Fast axis "Z": | m/min. 24 |
| Fast Y-axis | m/min. 6 |

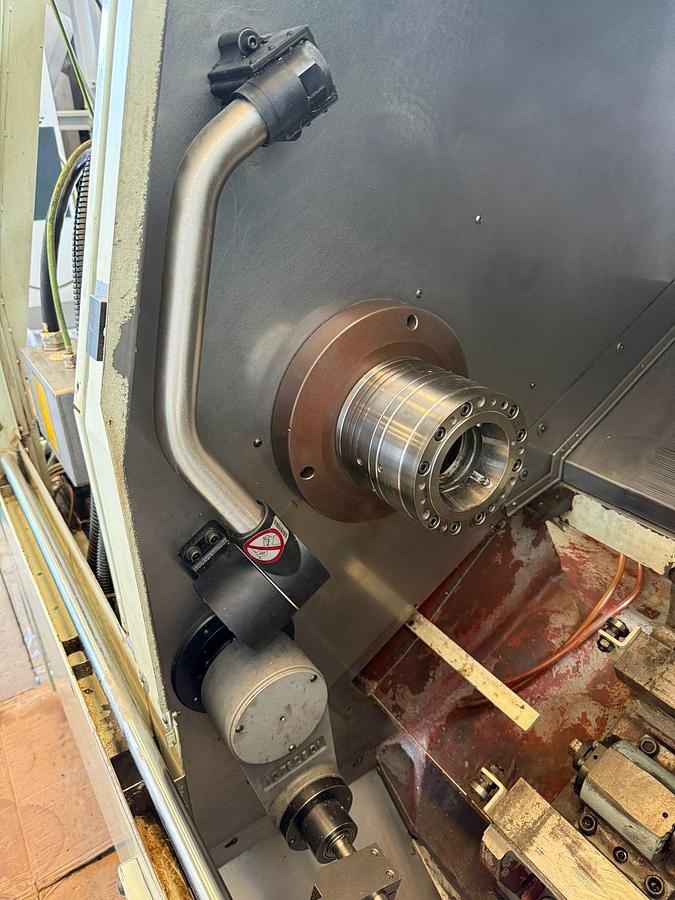

| COUNTER-TBONNET? - Variable rotation range: | rpm 40 - 5000 |
| Spindle nose: | mm 140 |
| Spindle hole: | 50 mm |
| Useful through hole: | mm 38 |
| Inner diameter of bearings: | mm 85 |
| Self-centering diameter: | mm 165 |
| REfrigerant - Tank capacity: | l. 250 |
| Pump capacity: | l/min. 150 |
| Pump motor power: | kW 0.73 |
| MOTORIZED TOOLS - Number of positions: | 12 |
| Variable rotation range: | rpm 50 - 4000 |
| Motor power: | kW 3.7 |
| ASSE -C- CONTROLLED - Type: | CS (direct) |
| Minimum programmable value: | 0,001° |
| Fast speed: | rpm 200 |
| DIMENSIONI - PESO Size and weight Occupancy with chip conveyor: | mm 4000 x 1900 x 2100 h |
| Height of the main spindle center: | mm 1055 |
| Weight with shredder conveyor: | Kg 6300 |
| ACCESSORI INCLUDED: | N.1 ELECTRONIC RENISHAW TASTATOR - N.1 18 BAR PUMP - N. 2 USED GRIPPERS DOOR - N. 1 PALETTE and SHUTTLE for the discharge of worked parts - N. 1 front strip at the lathe - Conversational Programming Manual Guide |
| !!! | The data reported are the result of information in our possession, where possible obtained from the manufacturers, therefore, despite good faith, due to the nature and complexity of the goods, such data may be incomplete and/or inaccurate and in no case may their accuracy be guaranteed and thus constitute any contractual obligation. You are always advised to inspect the goods and request confirmation of the data. |
