2005 BIGLIA B 550 YS
2005 BIGLIA B 550 YS
Contact us for price
Location:Urgnano, Italy
or
Call +39 035 – 0392235
Specifications
| Manufacturer | BIGLIA |
| Model | B 550 YS |
| Year | 2005 |
| Condition | Used |
| Stock Number | 00037 |

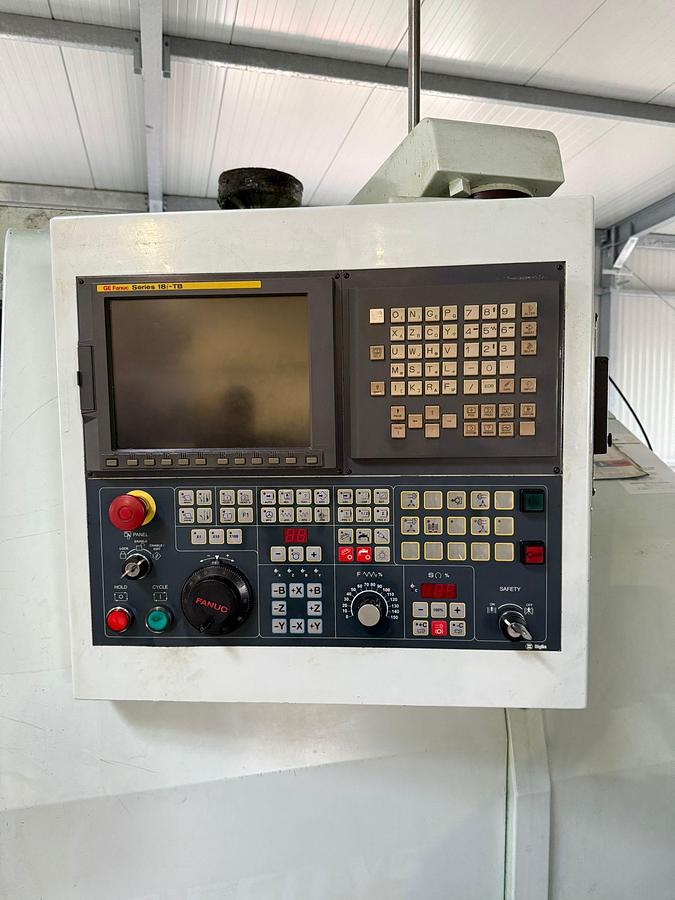

| CNC: | GE FANUC 18i-TB |
| Max rotating diameter on the bench | mm Ø 580 |
| Max turning diameter | mm Ø 210 |
| Max turning length | mm Ø 550 |
| Bar passage | mm 65 |
| Main spindle nose type | ASA A6” |
| Spindle hole diameter | 76 mm |
| Spindle rotation speed | RPM 4500 |
| MAIN SPINDLE POWER | Kw 22 |
| X axis travel | 173 mm |
| Z axis travel | 550 mm |
| Y axis travel | +55 -50 mm |
| TURRET Number of positions | 12 positions |
| Rotation speed of powered tools | 4000 rpm |
| Motor power of powered tools | Kw 3.7 |
| COUNTER SPINDLE Counter spindle hole diameter | Ø 55 mm |
| Nose to spindle | ASA 5” |
| DIMENSIONS - WEIGHT | 3150x1980x2240H - kg. 4,900 |
