2001 MIYANO BNE-51SY

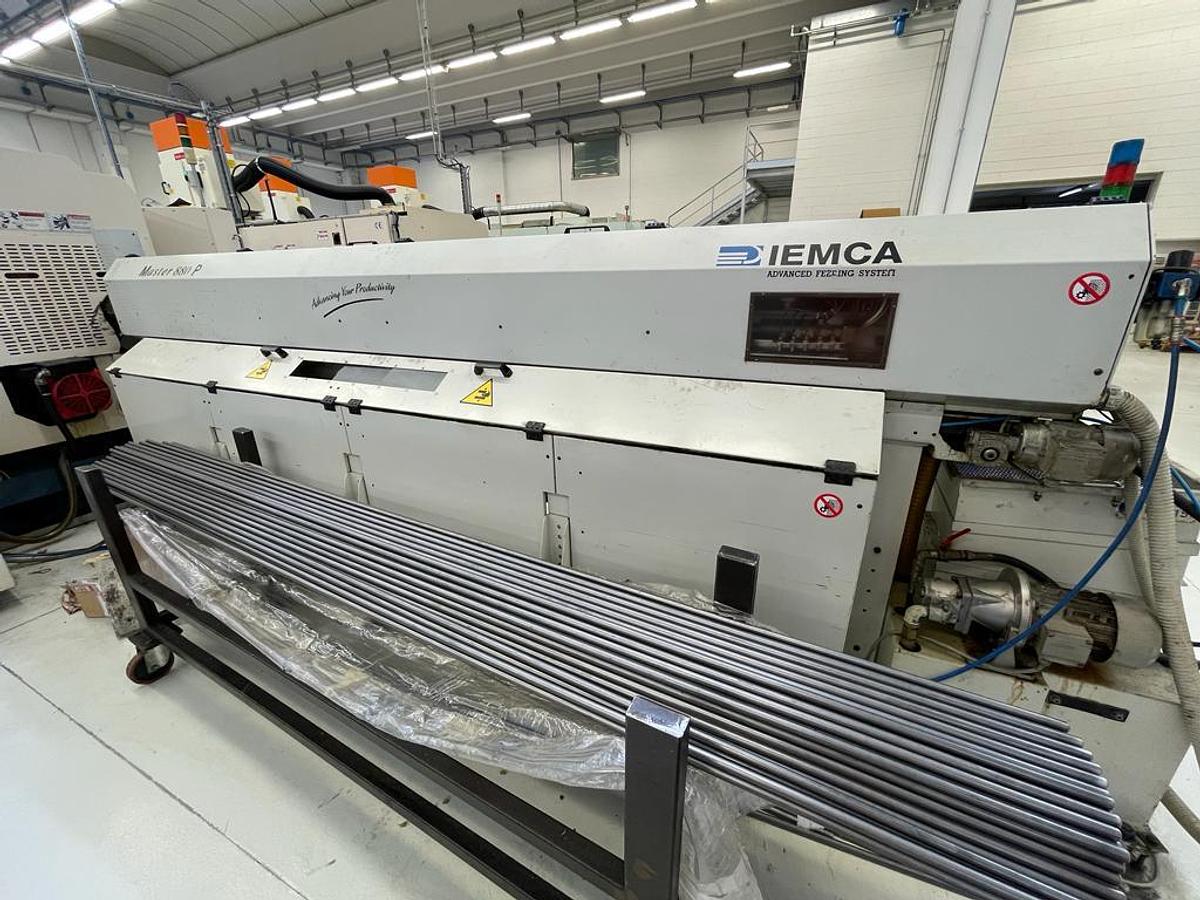

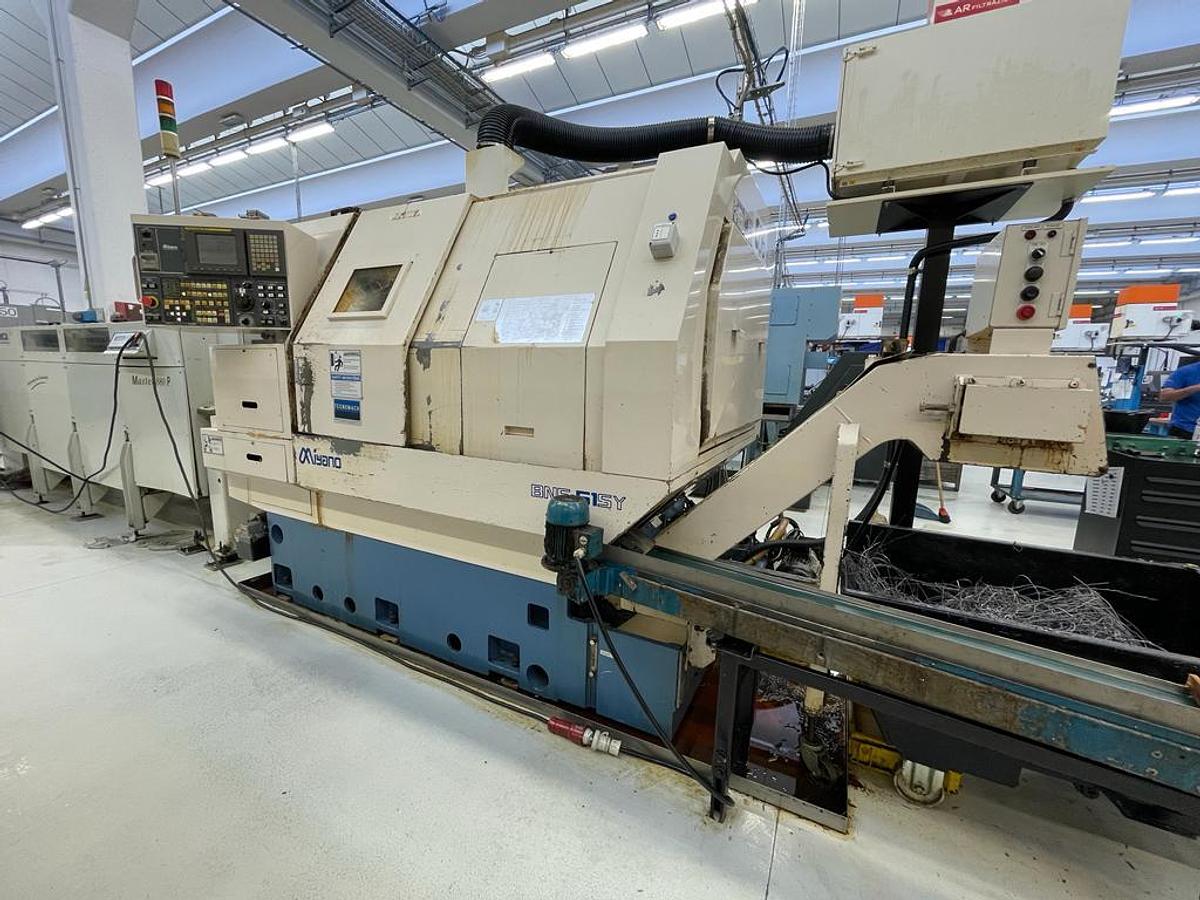

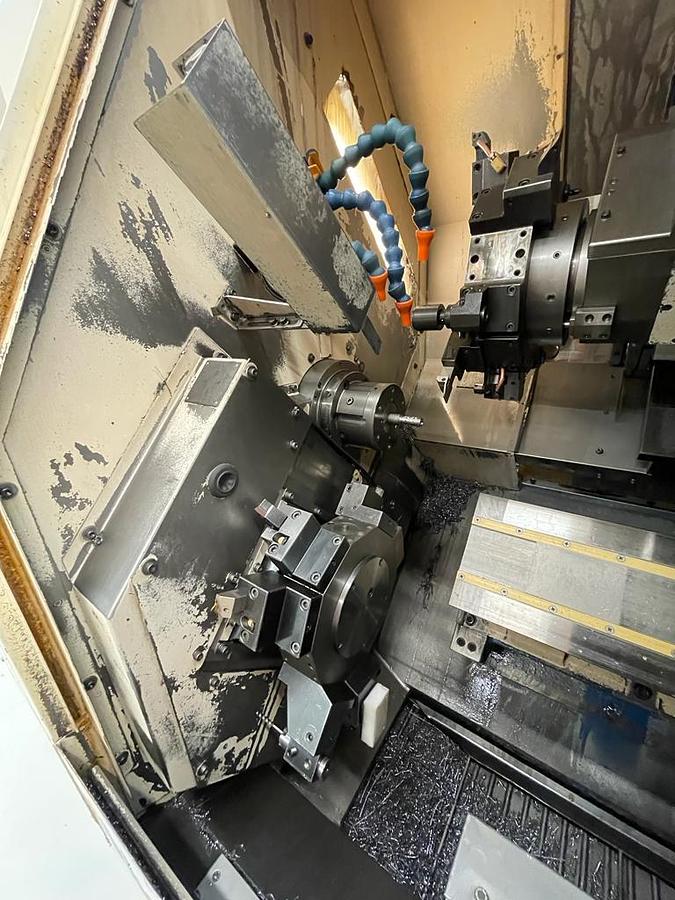

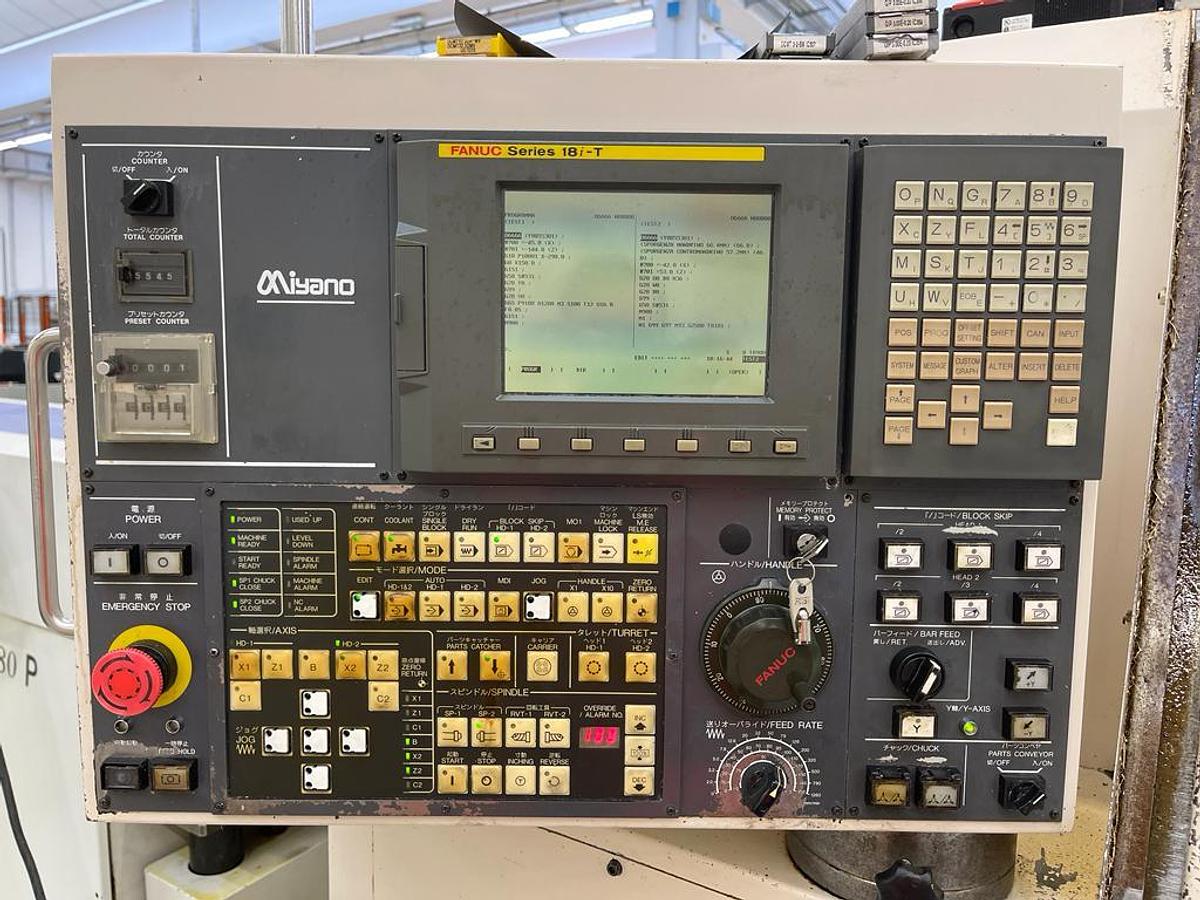

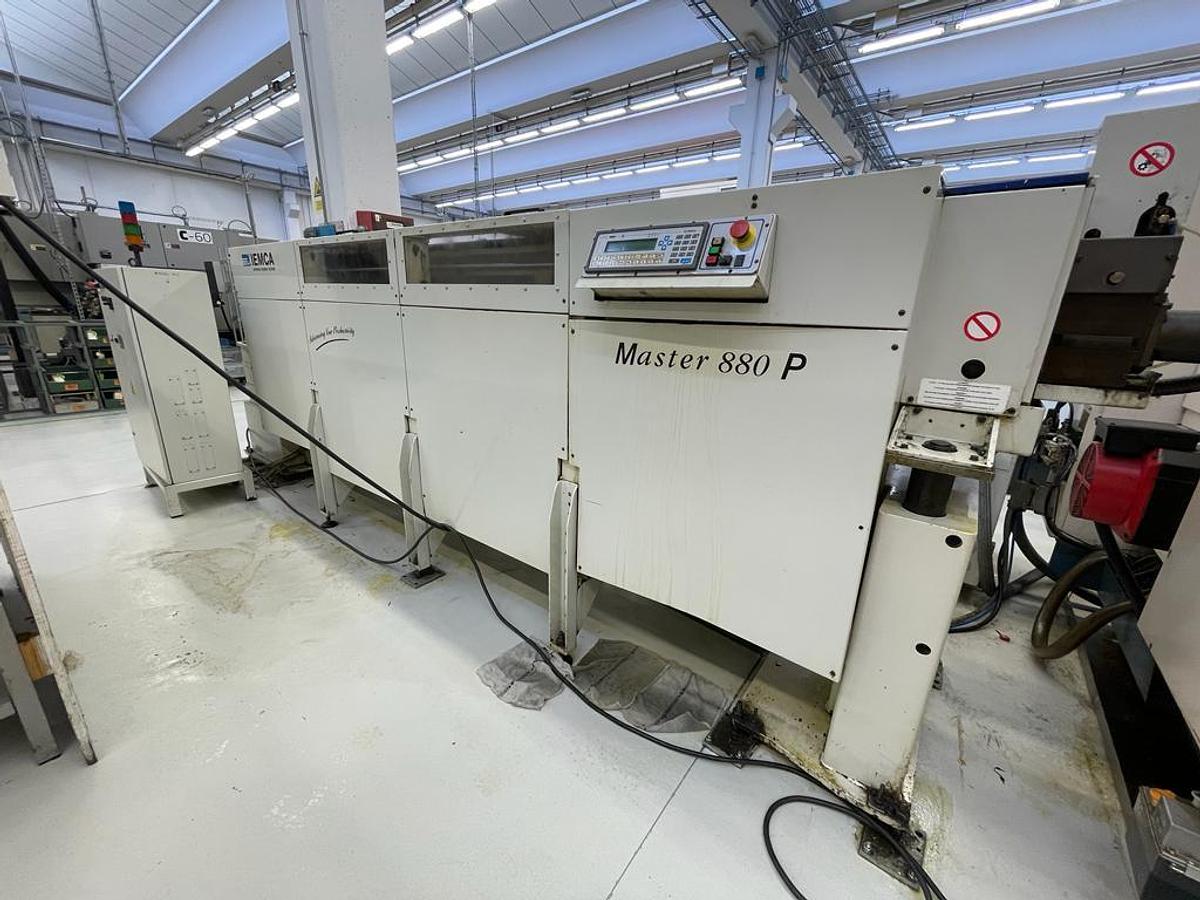

The 2001 Miyano BNE-51SY CNC lathe is a used lathe in good condition, equipped with a FANUC Series 18i-TB control. This lathe offers reliable performance with 44,926 hours of total use and 12,974 hours of cutting. It is designed for precision machining thanks to a main spindle with a maximum speed of 4000 rpm and a maximum machining diameter of 51 mm. The machine is powered by a 7.5/11 kW motor. The counterspindle features similar features, allowing a maximum rotation speed of 4000 rpm. The lathe includes two turrets: the first with 12 positions, 6 of which can be motorized, and the second with 10 positions, 5 of which can be motorized, both compatible with 25x25 mm external tools. The turrets support tool motors with a power of 2.5 kW and 1 kW respectively. The lathe's dimensions, including the chip conveyor, are 2855 x 2070 x 2083 mm (height), and it weighs 7200 kg. A 2007 IEMCA Master 880 P bar feeder is also included, expanding its operating capacity. This lathe is a solid choice for medium to high-precision applications.
