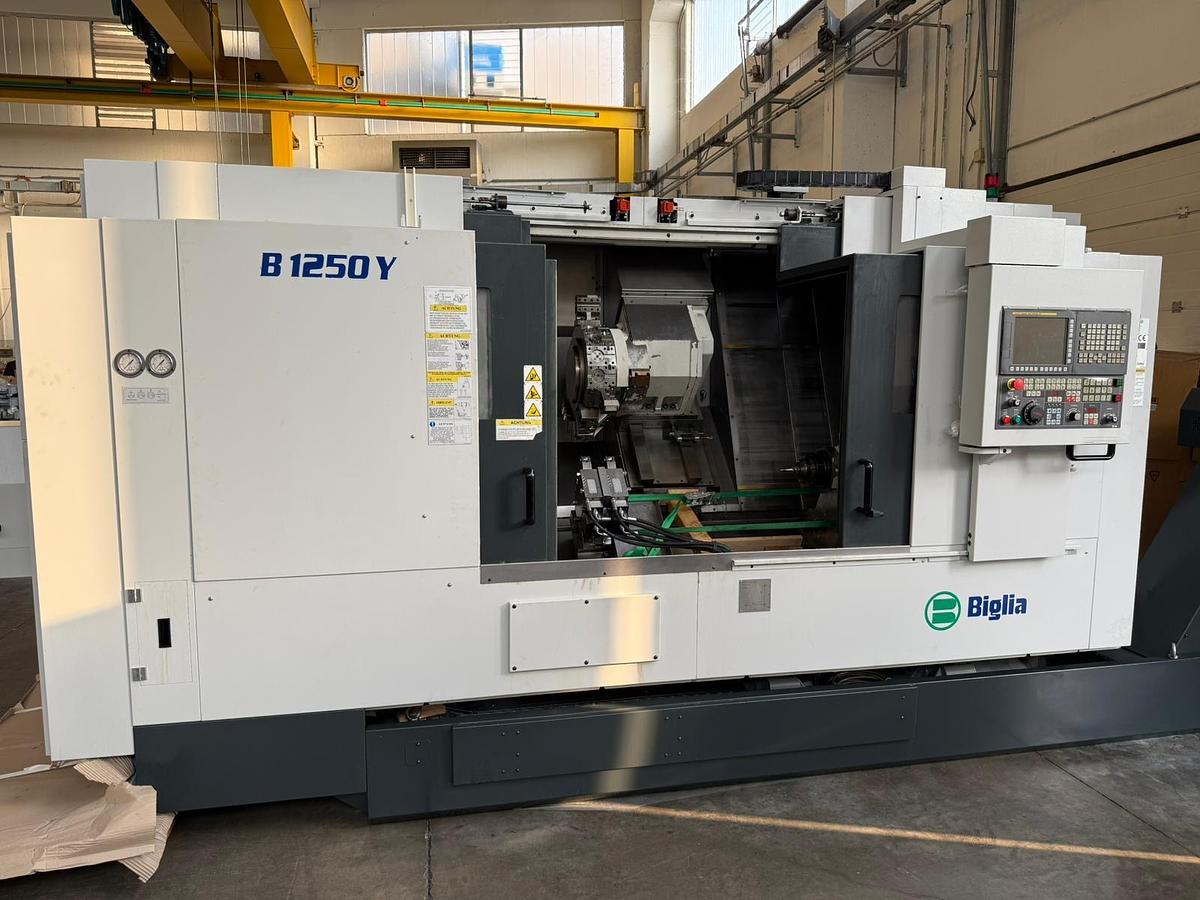

2015 BIGLIA B 1250 YL
Featured
2015 BIGLIA B 1250 YL
Contact us for price
Location:Urgnano, Italy
or
Call +39 035 – 0392235
Specifications
| Manufacturer | BIGLIA |
| Model | B 1250 YL |
| Year | 2015 |
| Condition | Used |
| Stock Number | 00033 |

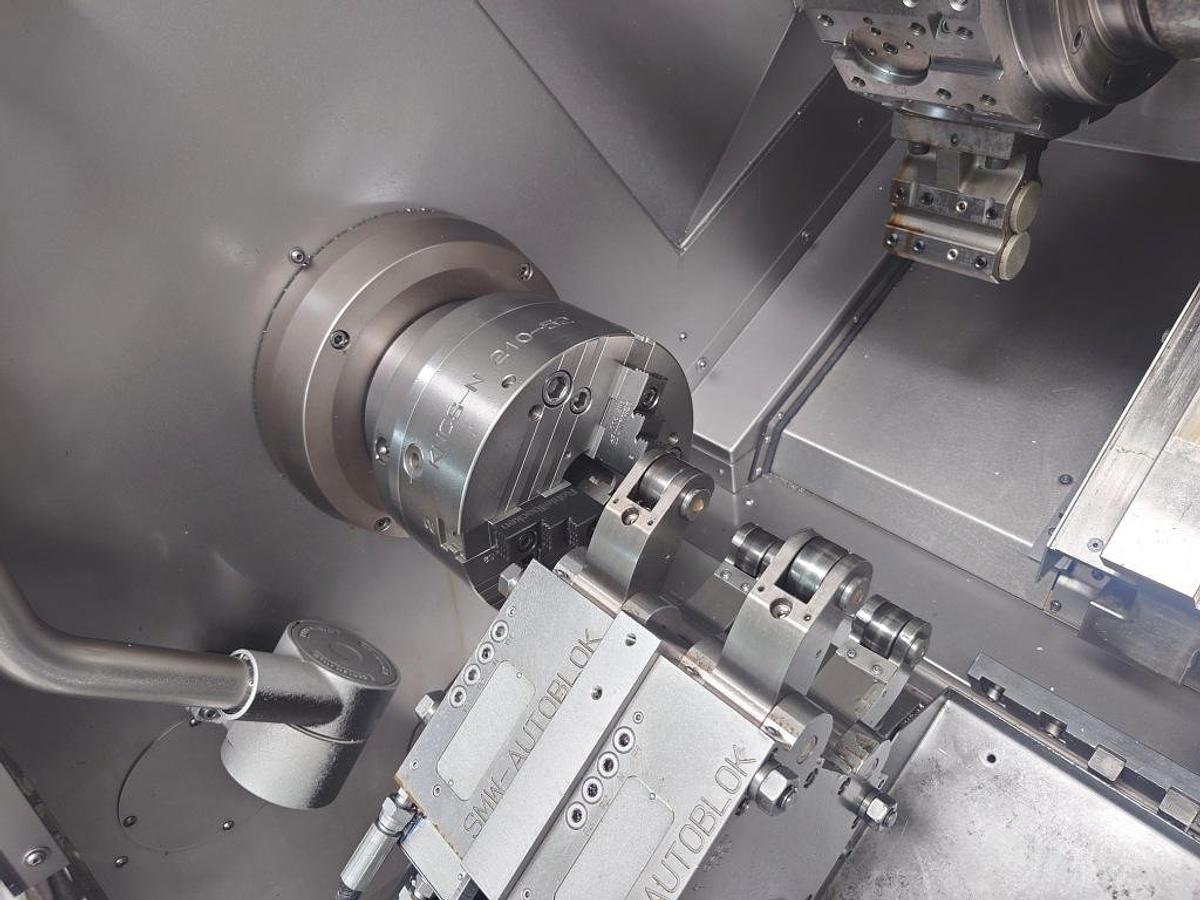

| n. 1 ASA 6” main electrospindle, 67 mm hole | bar passage mm. 65 max. spindle speed rpm 4500 motor power (S1-S3 at 1500 rpm) Kw. 30-40 torque (S1-S3) Nm. 286 |

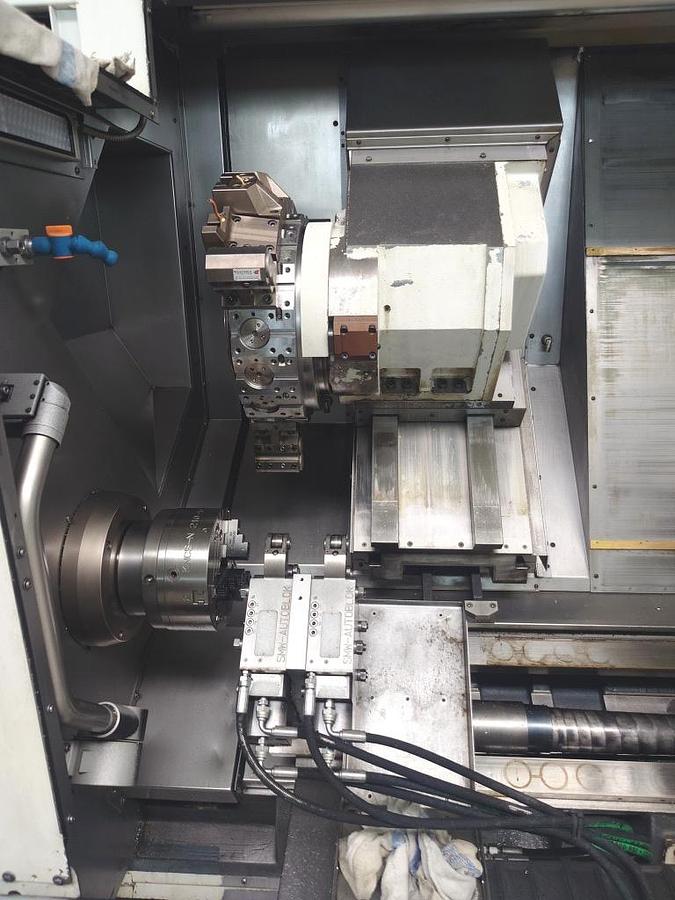

| 16-station turret | Max. rotation rpm 6000 Engine power Kw. 10 – 17.5 Max. torque Nm 56 |

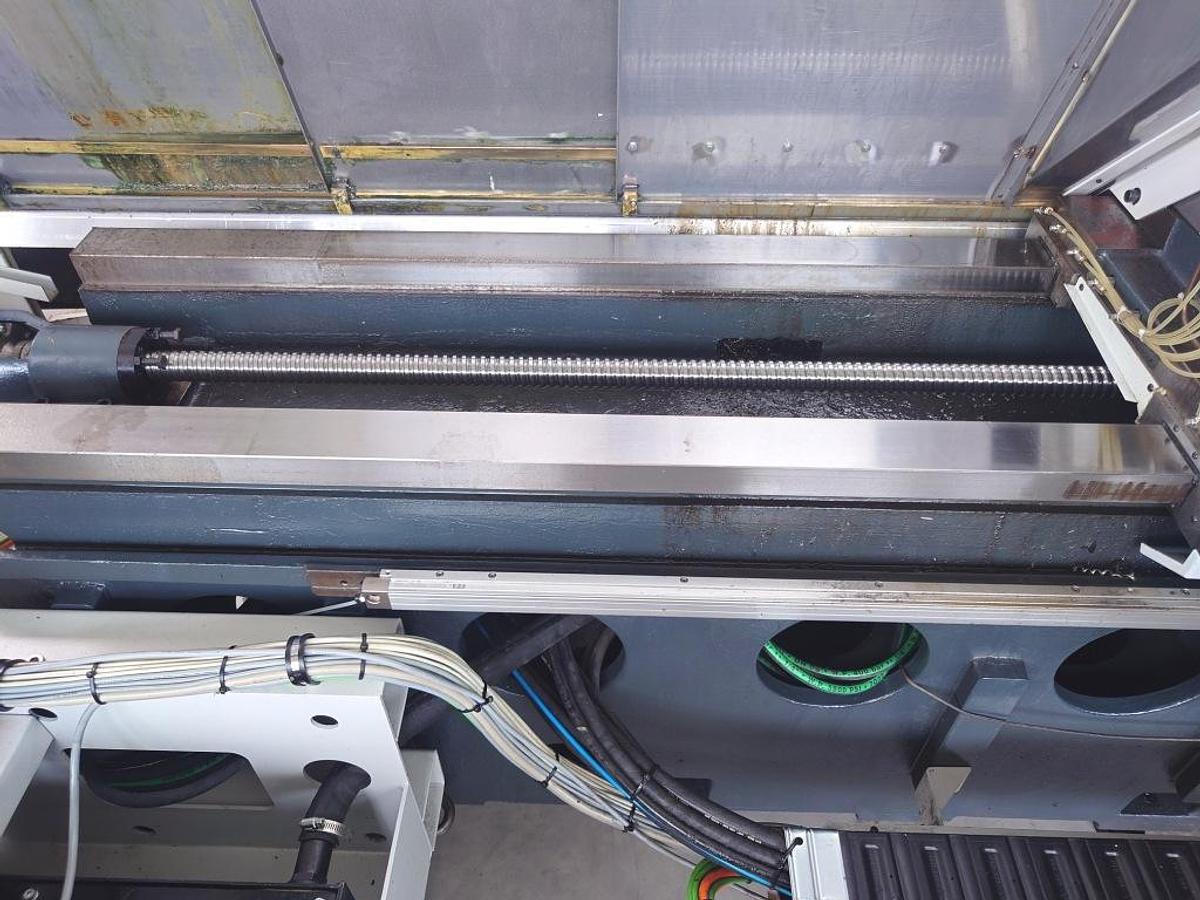

| “C” axis direct to spindle and disc brake | Carriage group composed of the longitudinal carriage (Z axis) and a double 45° wedge transverse carriage (X and Y axes) |

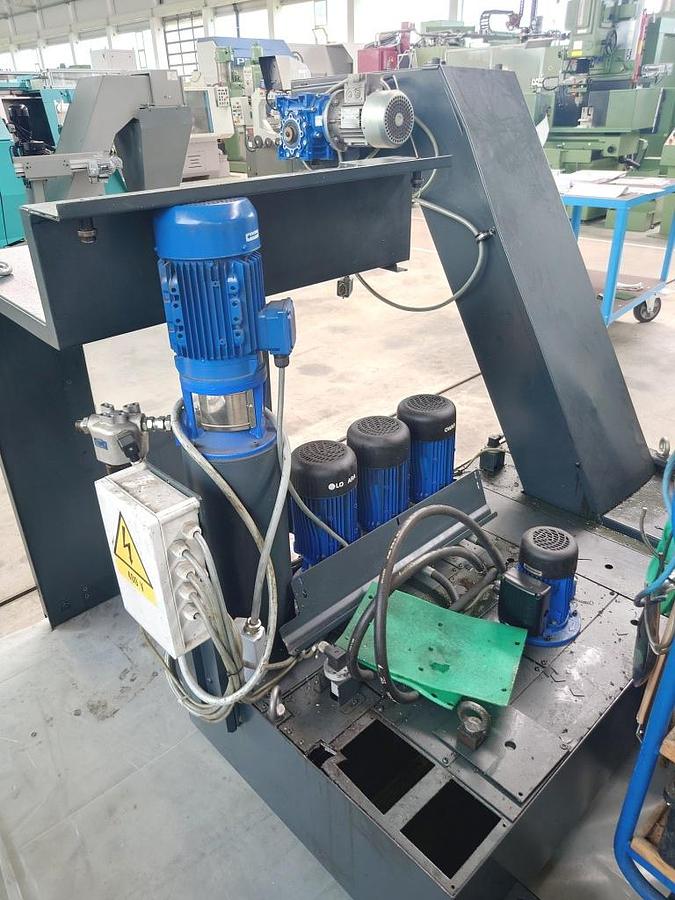

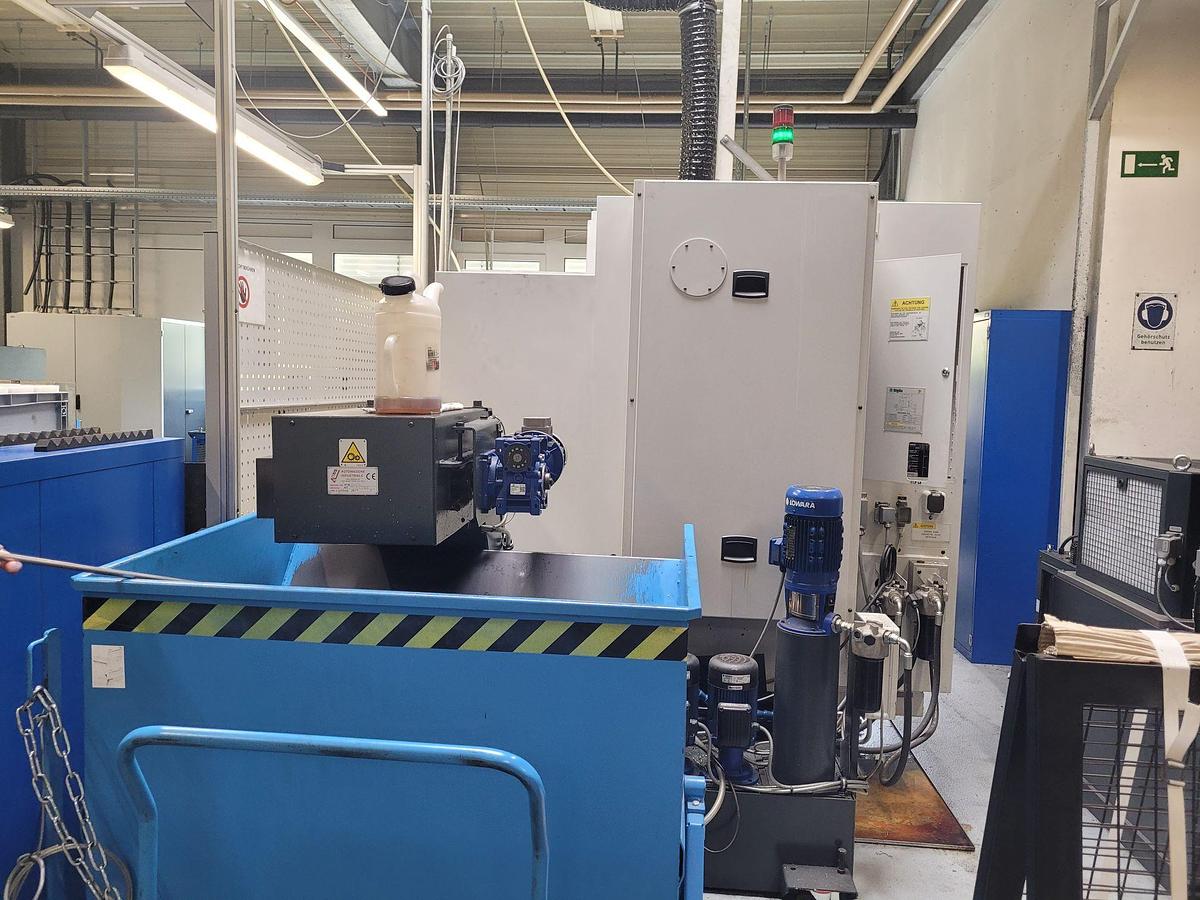

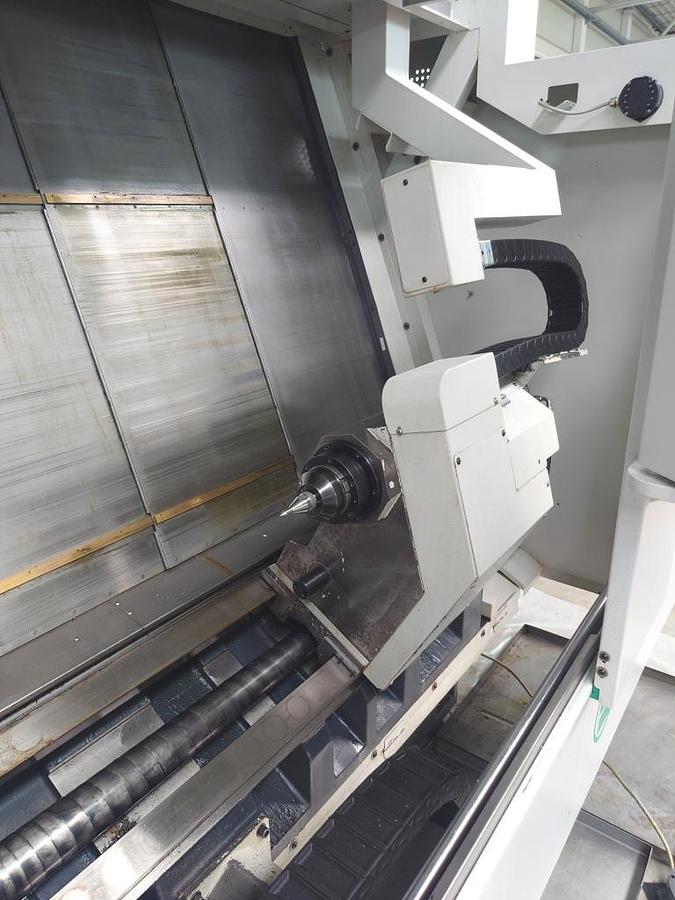

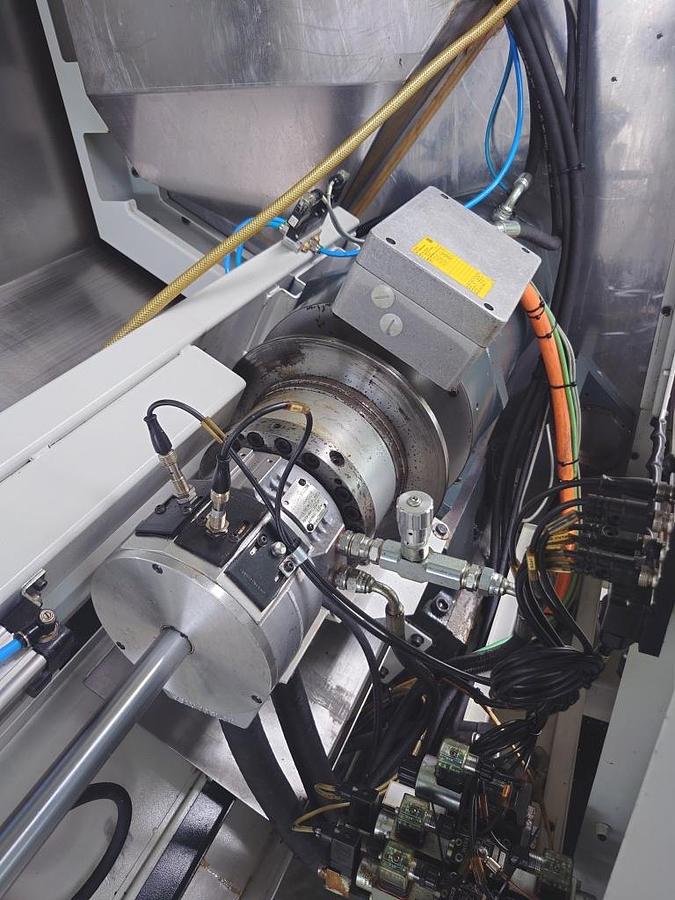

| In-cycle tailstock with positioning in the work area by means of coupling with Z-carriage and automatic locking. Hydraulic quill diam. 115 mm. CM 5 cartridge. | Chip conveyor with 7 bar coolant pump and filter |
| Y-axis features | stroke mm. 140 (+80 – 60) |
| Weight and dimensions: | Height mm. 2335 – depth mm. 2192 - length with evacuator mm. 5430 - net weight of standard machine Kg. 8100 |
| n. 1 ASA 6��� main electrospindle, 67 mm hole | bar passage mm. 65 max. spindle speed rpm 4500 motor power (S1-S3 at 1500 rpm) Kw. 30-40 torque (S1-S3) Nm. 286 |
| ���C��� axis direct to spindle and disc brake | Carriage group composed of the longitudinal carriage (Z axis) and a double 45° wedge-shaped transverse carriage (X and Y axes) |
| In-cycle tailstock with positioning in the work area by means of coupling with Z carriage and automatic locking. Hydraulic quill diam. 115 mm. CM 5 cartridge | Chip conveyor with 7 bar coolant pump and filter |
