2006 MIYANO BNE-51SY

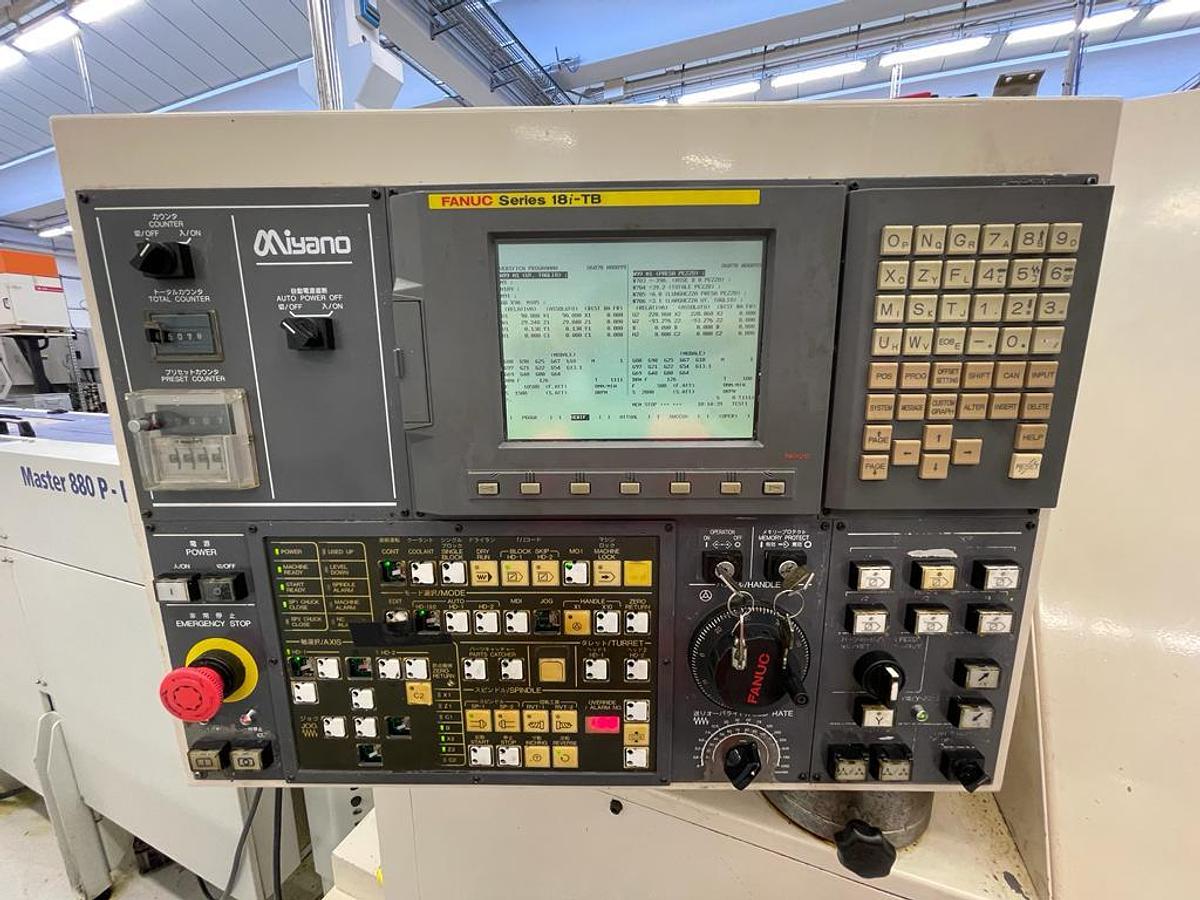

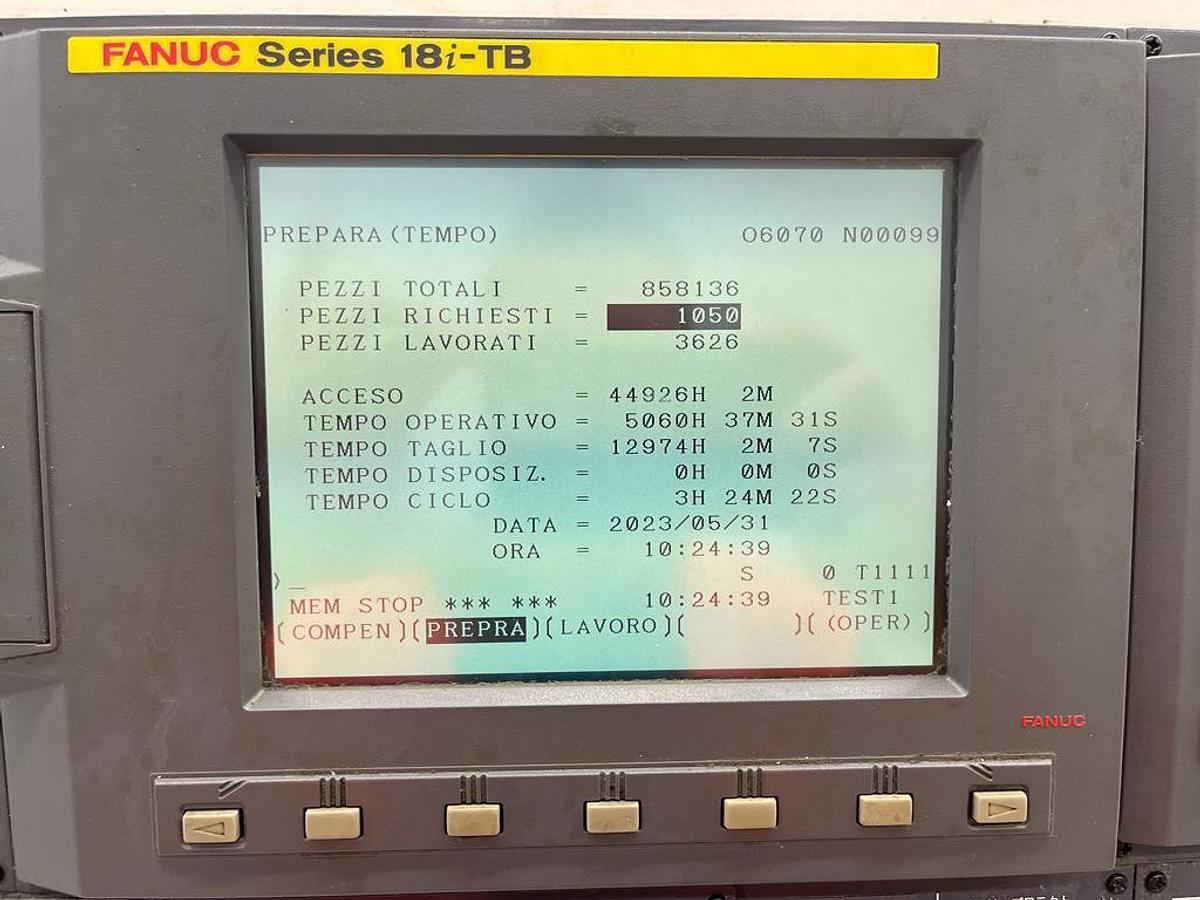

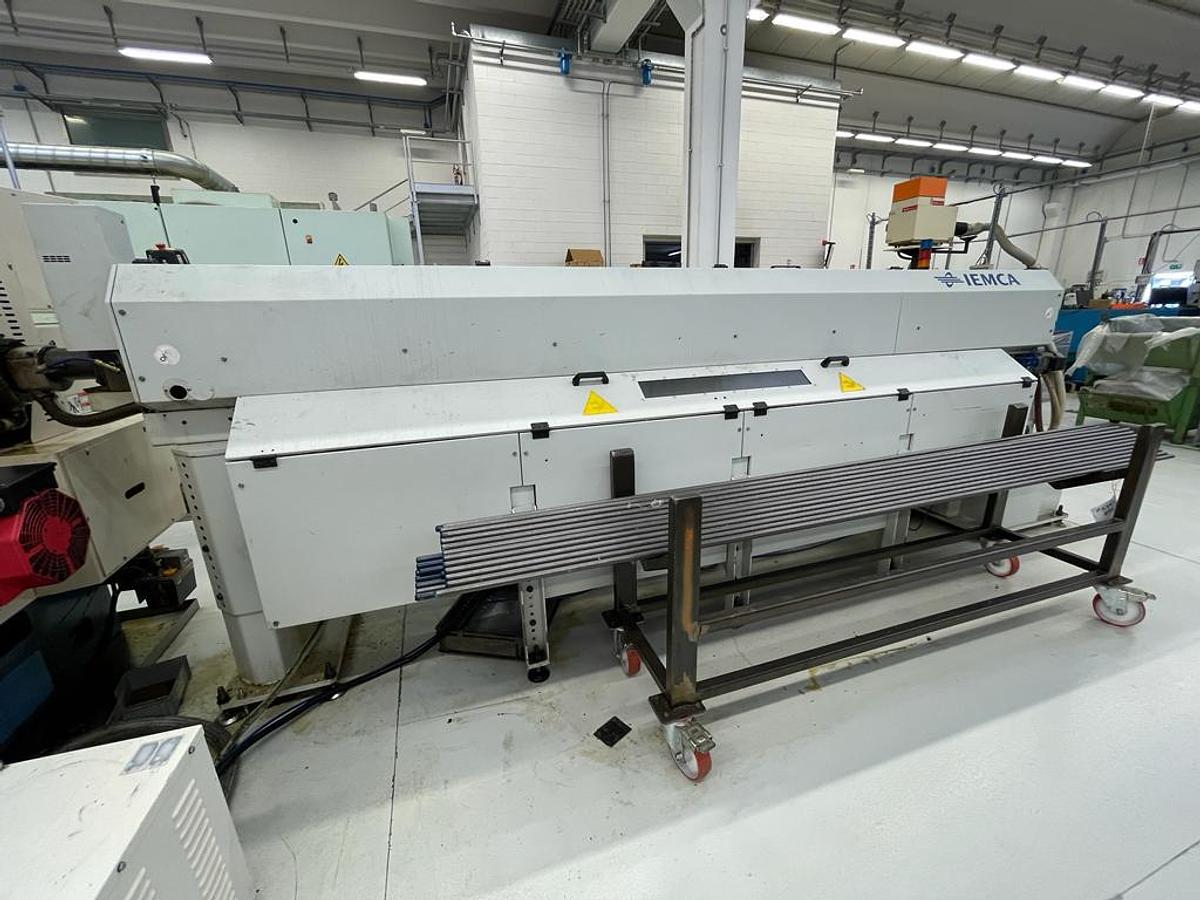

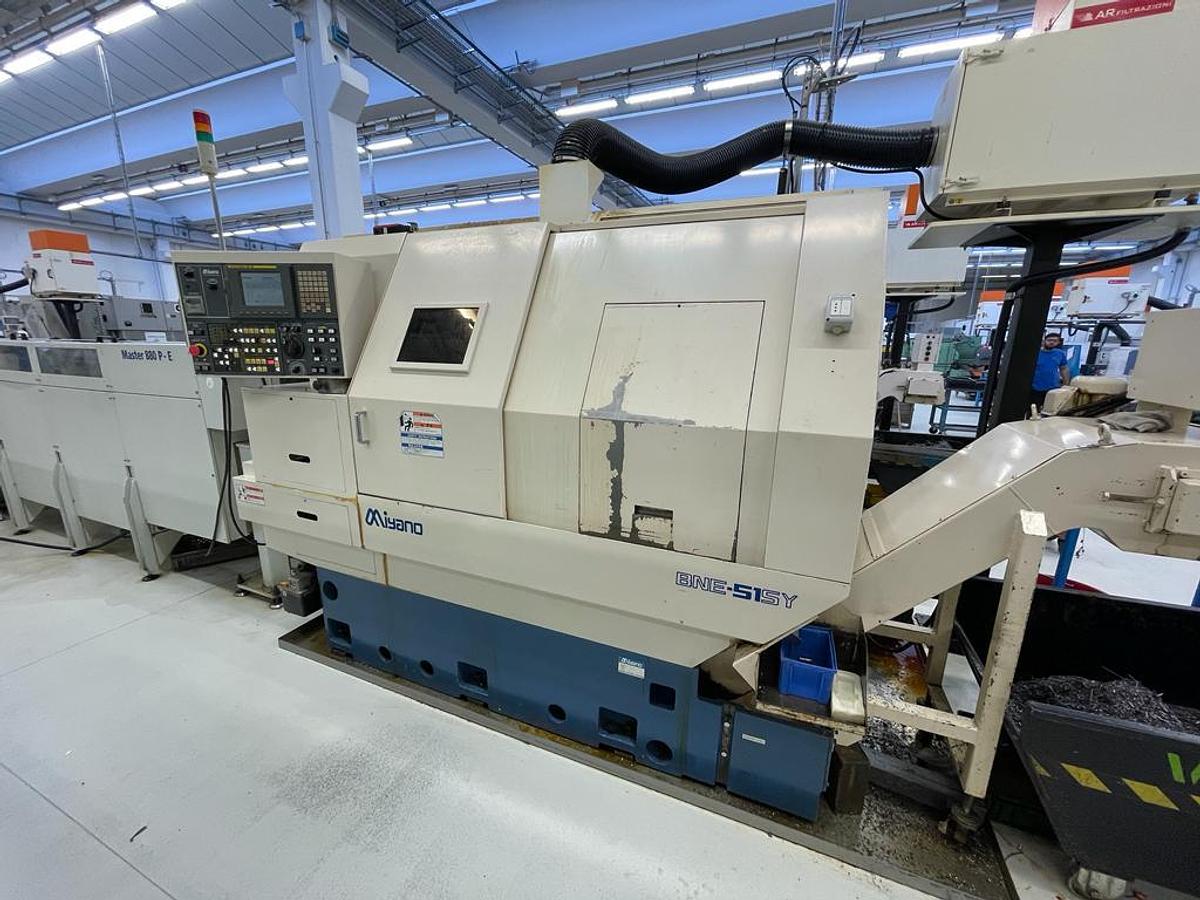

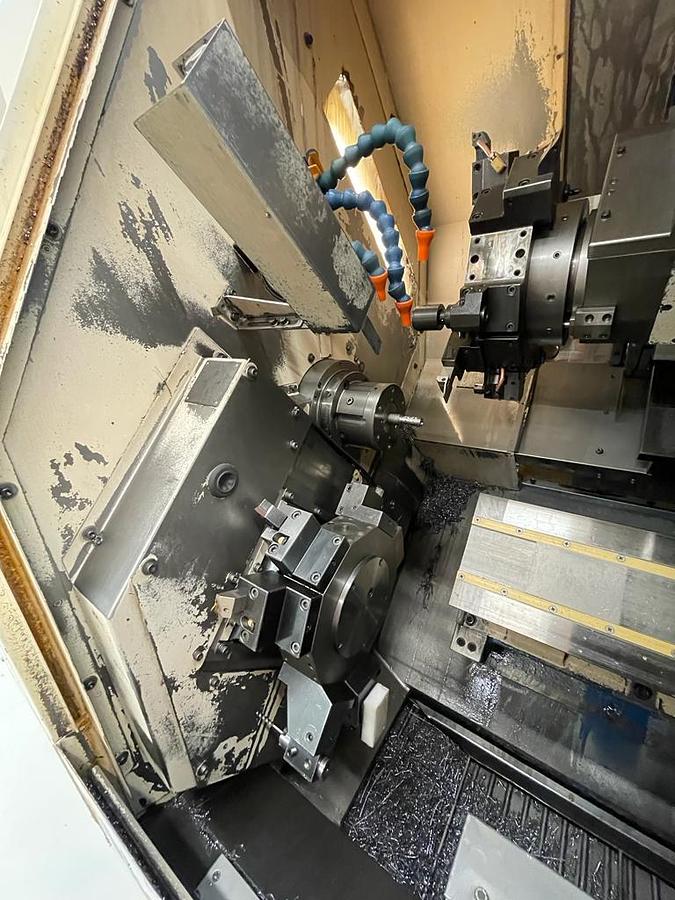

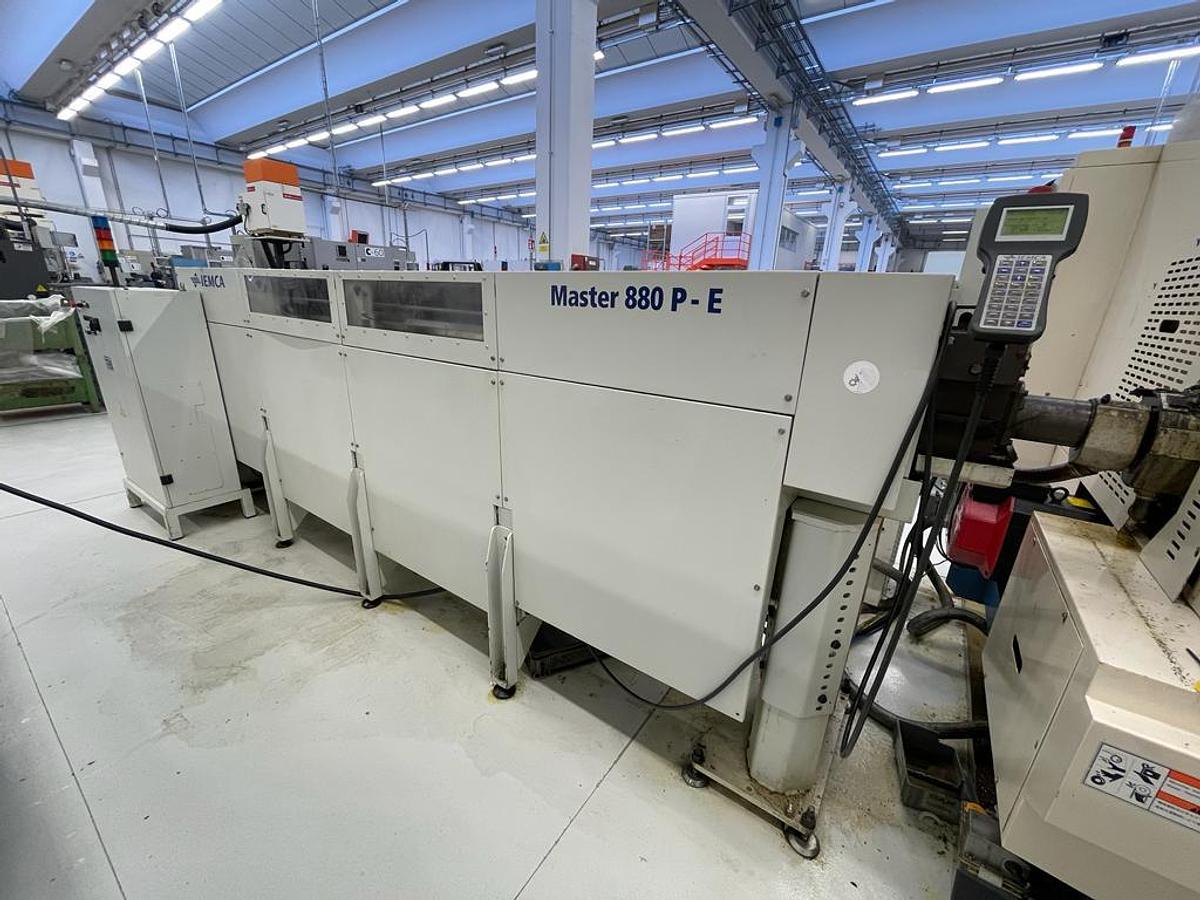

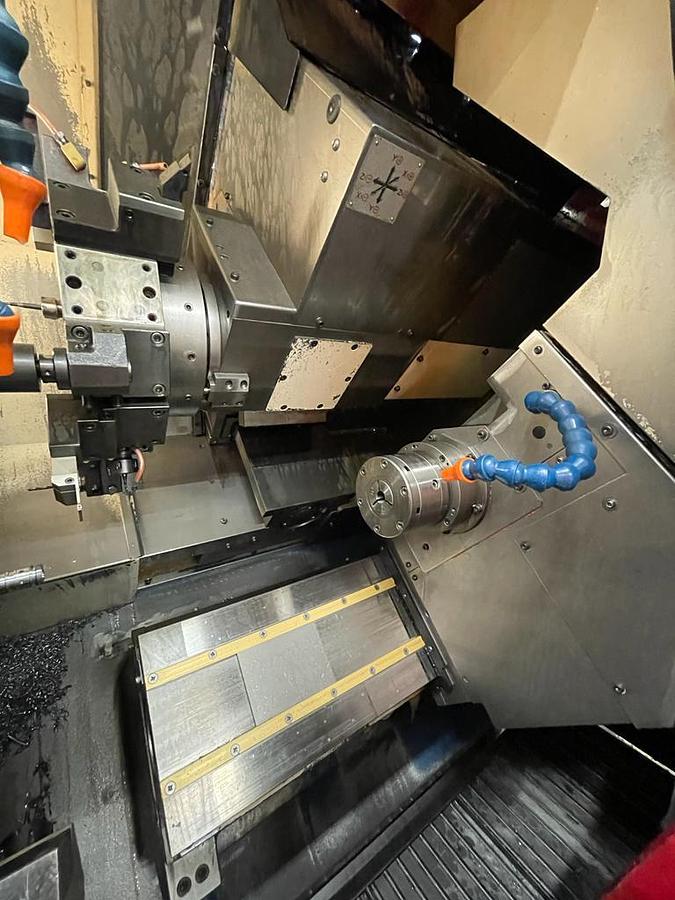

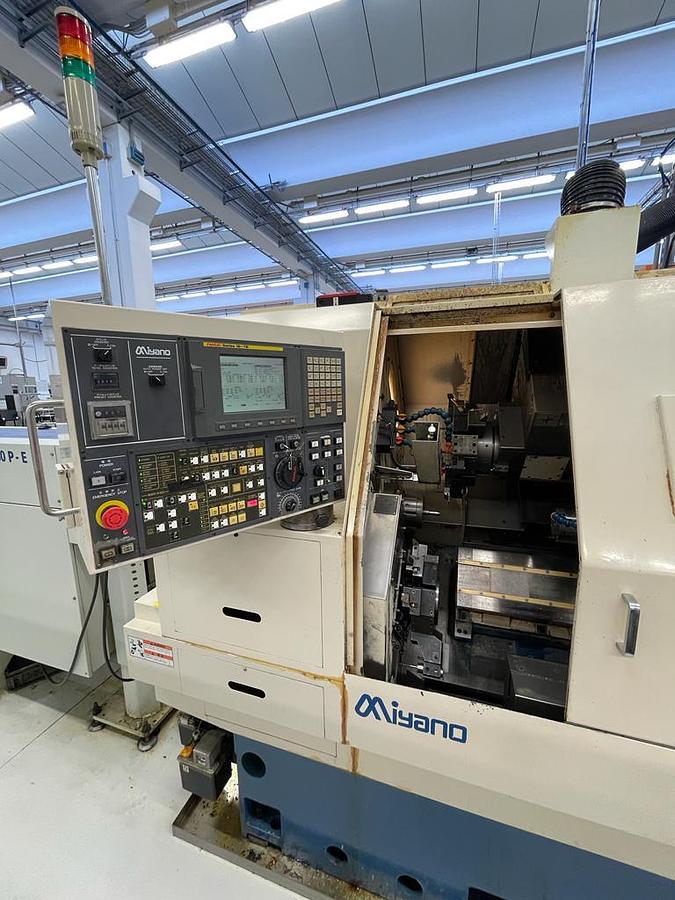

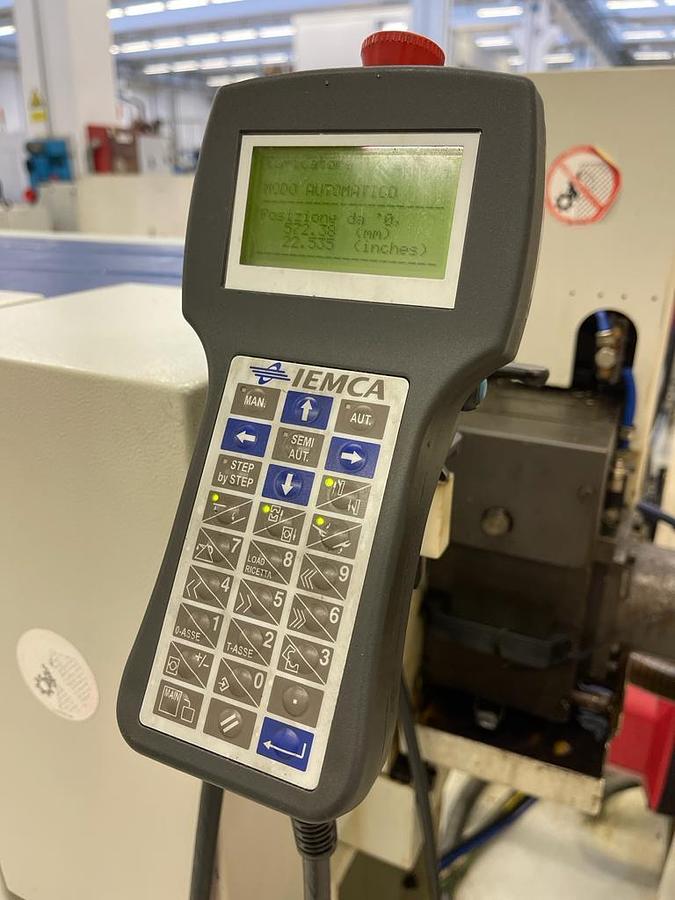

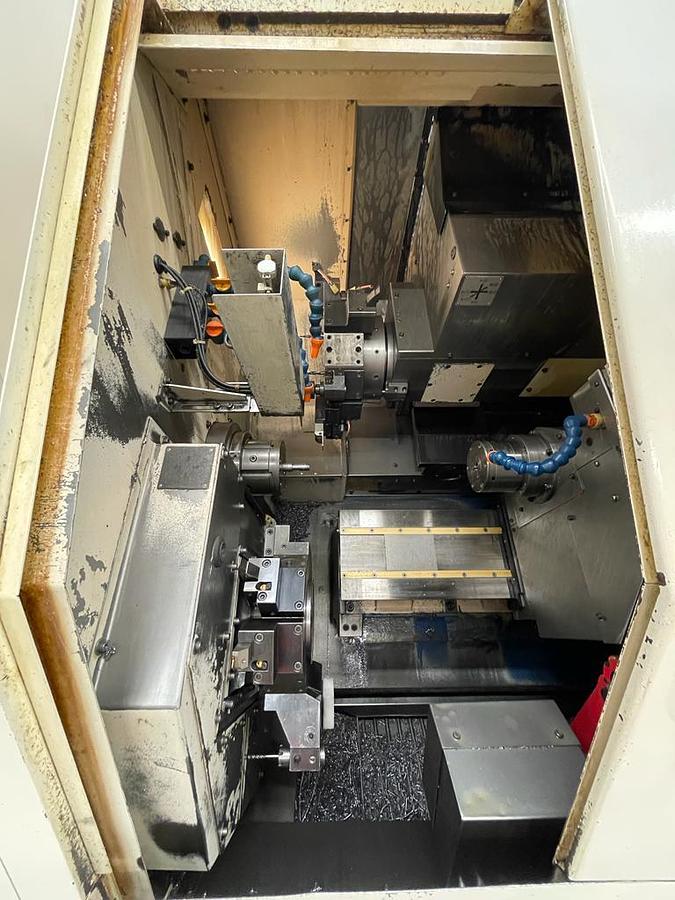

The Miyano BNE-51 SY CNC lathe, manufactured in 2006, is a well-maintained, used machine offering reliable performance thanks to the FANUC Series 18i-TB CNC control. With 44,926 operating hours and 12,974 cutting hours, it is designed for precision turning operations. The main spindle has a rotation range of up to 4000 rpm, with a 6" ASA spindle nose and a maximum bar machining diameter of 51 mm, supported by a powerful 7.5/11 kW motor. The subspindle also offers a maximum rotation of 4000 rpm with similar capabilities. The structure includes two turrets: the first with 12 positions, 6 of which can be motorized, and the second with 10 positions, 5 of which can be motorized, both designed to operate with 25x25 mm external tools. The lathe's dimensional specifications, including the external area, are 2855 x 2070 x 2083 mm (height), with a weight of 7200 kg. A 2007 IEMCA Master 880 P, type 33 L, bar feeder is included, expanding its operating capacity, making this machine suitable for medium and high-precision production applications.
