2014 BIGLIA B 446 T3-Y2
2014 BIGLIA B 446 T3-Y2
Contact us for price
Location:Urgnano, Italy
or
Call +39 035 – 0392235
Description

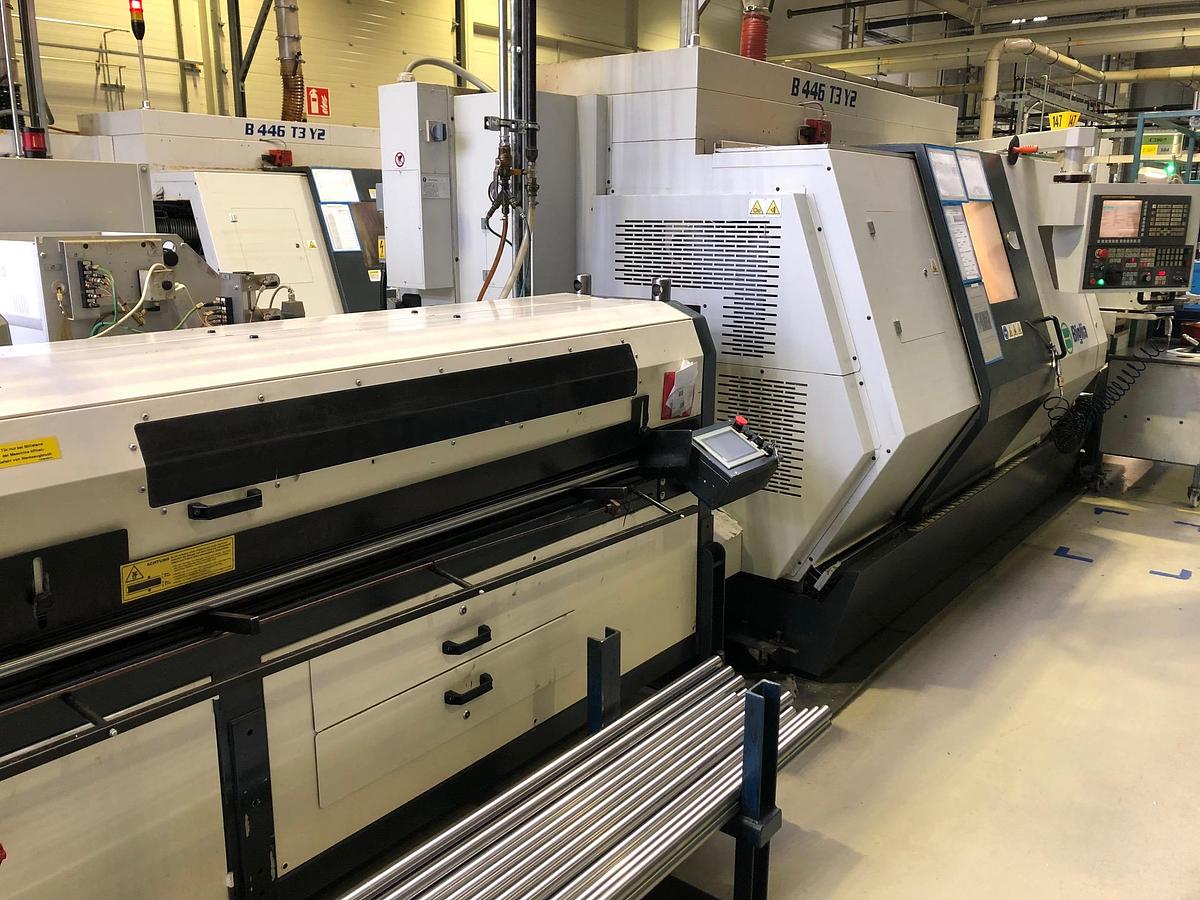

The Biglia B 446 T3 Y2 CNC lathe from 2014 is an ideal used machine for precision machining. Equipped with a

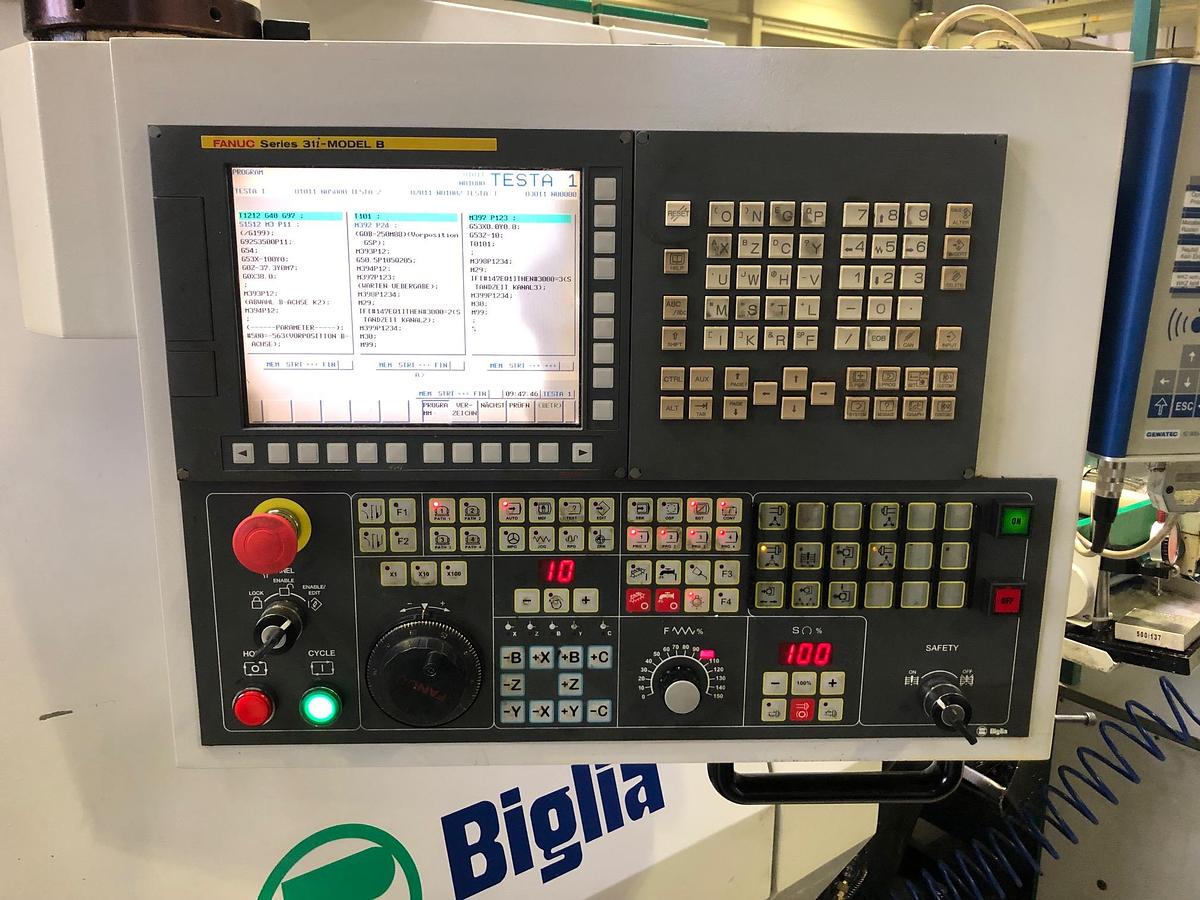

FANUC Series 31i – MODEL B control, offers advanced management of turning processes. It can work pieces with a
maximum diameter of 51 mm and a length of 230 mm. The main spindle has a maximum speed of 5000 rpm,
with a power of 15 kW, and the same goes for the counter-spindle, which has a power of 11 kW.

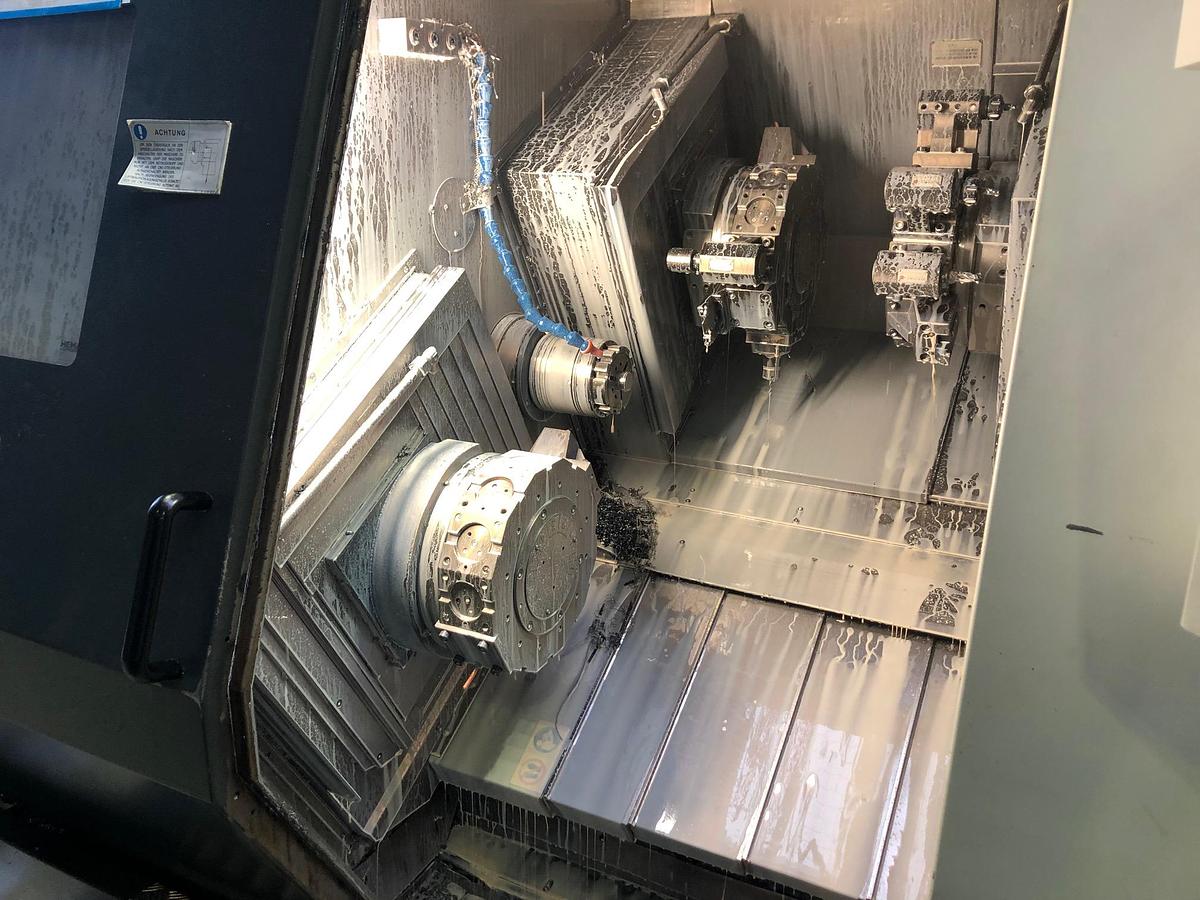

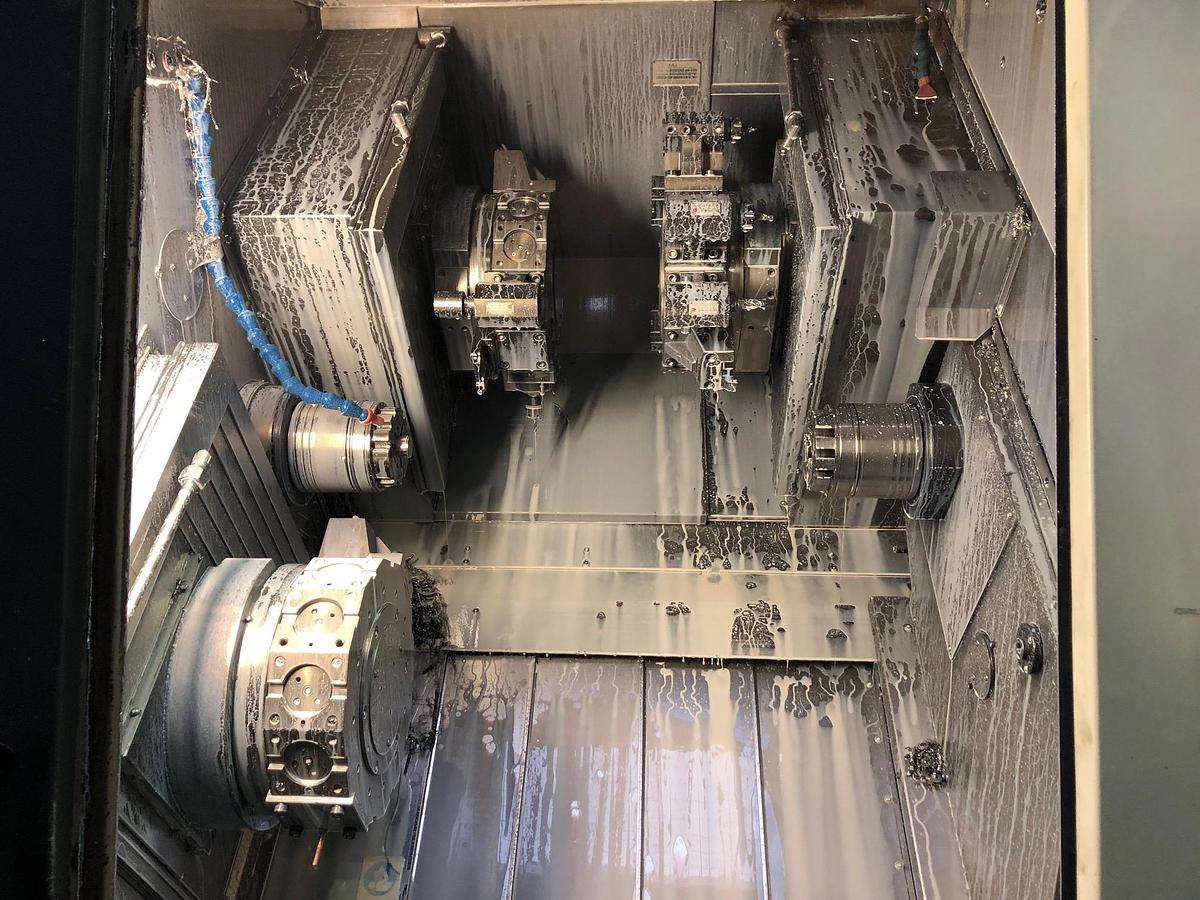

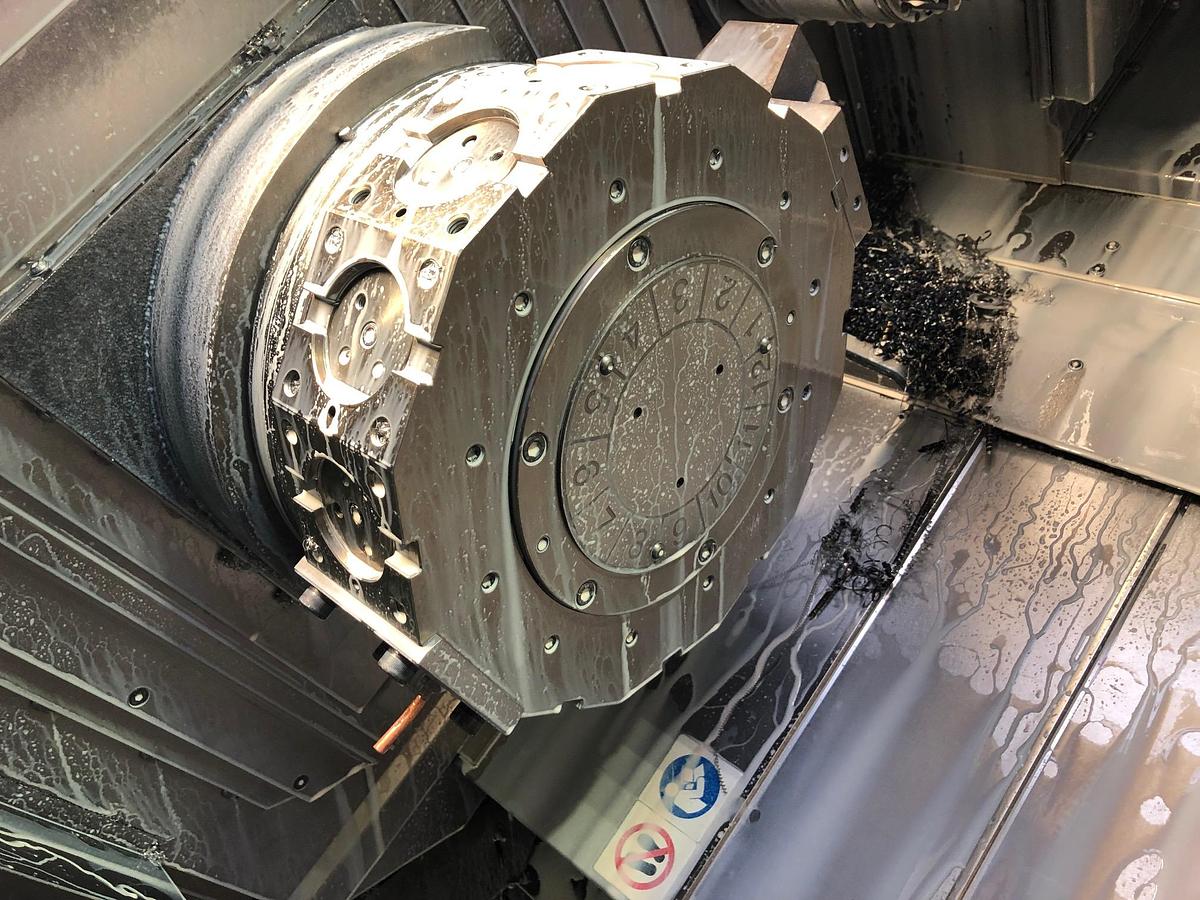

The top left turret and the right one, together with the lower turret, each offer 12 positions with a
rotation speed of 4000 rpm and a motor power of 3.7 kW. The machine is equipped with a large reservoir of

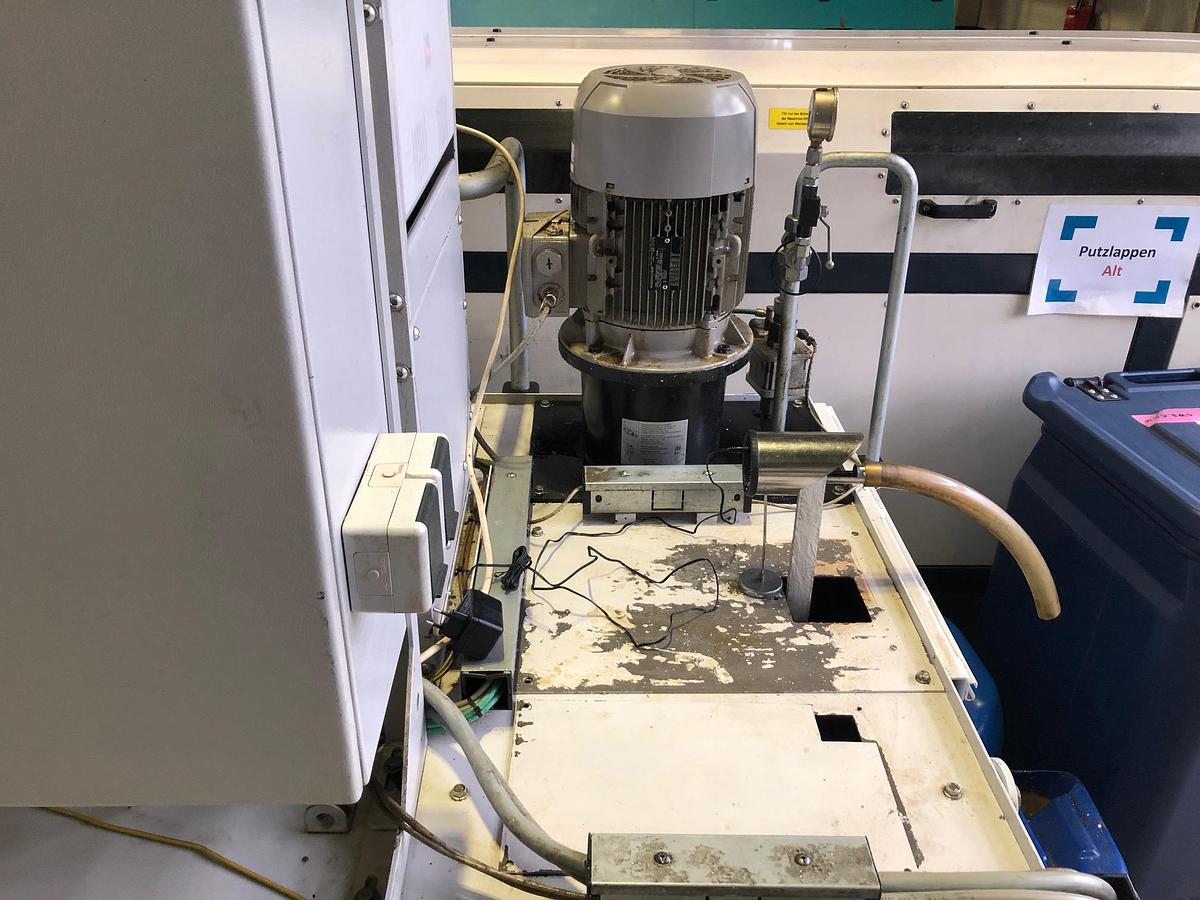

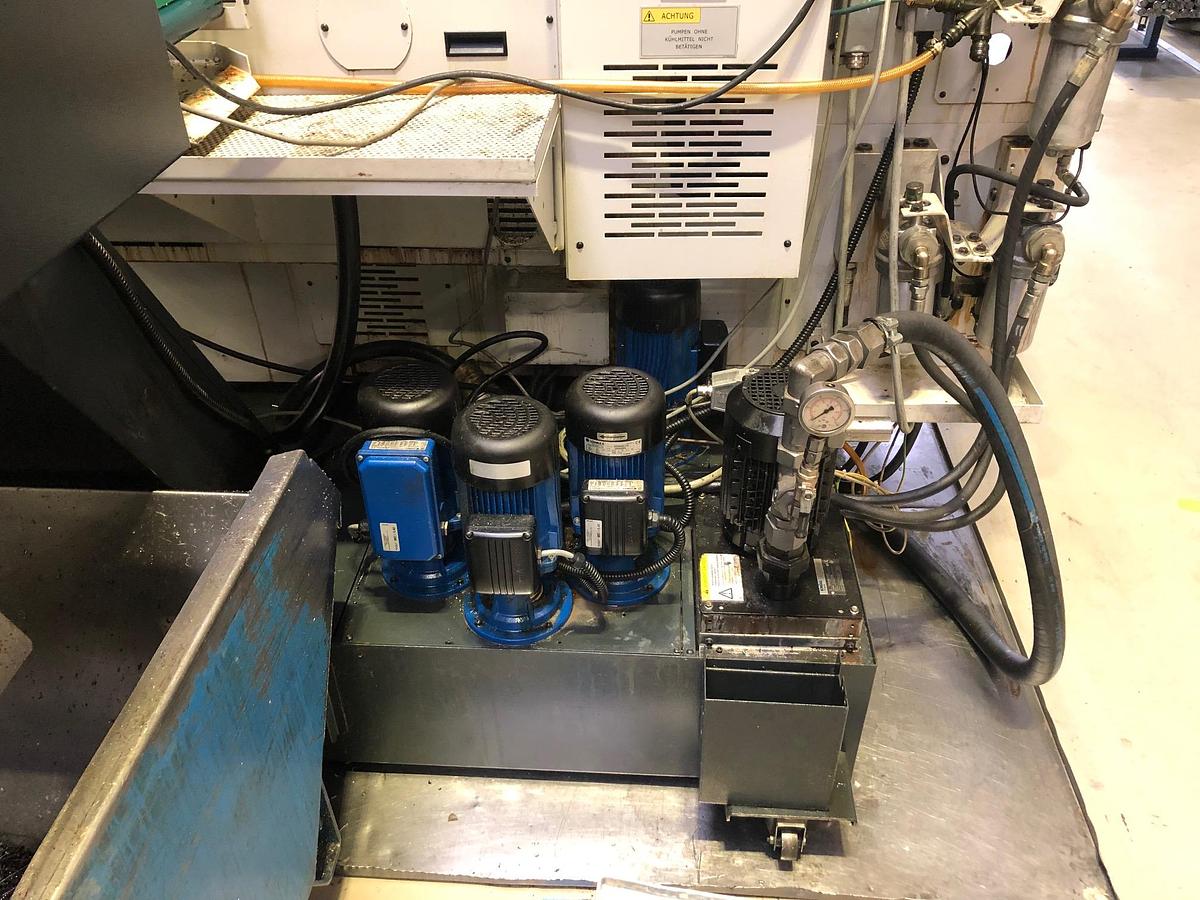

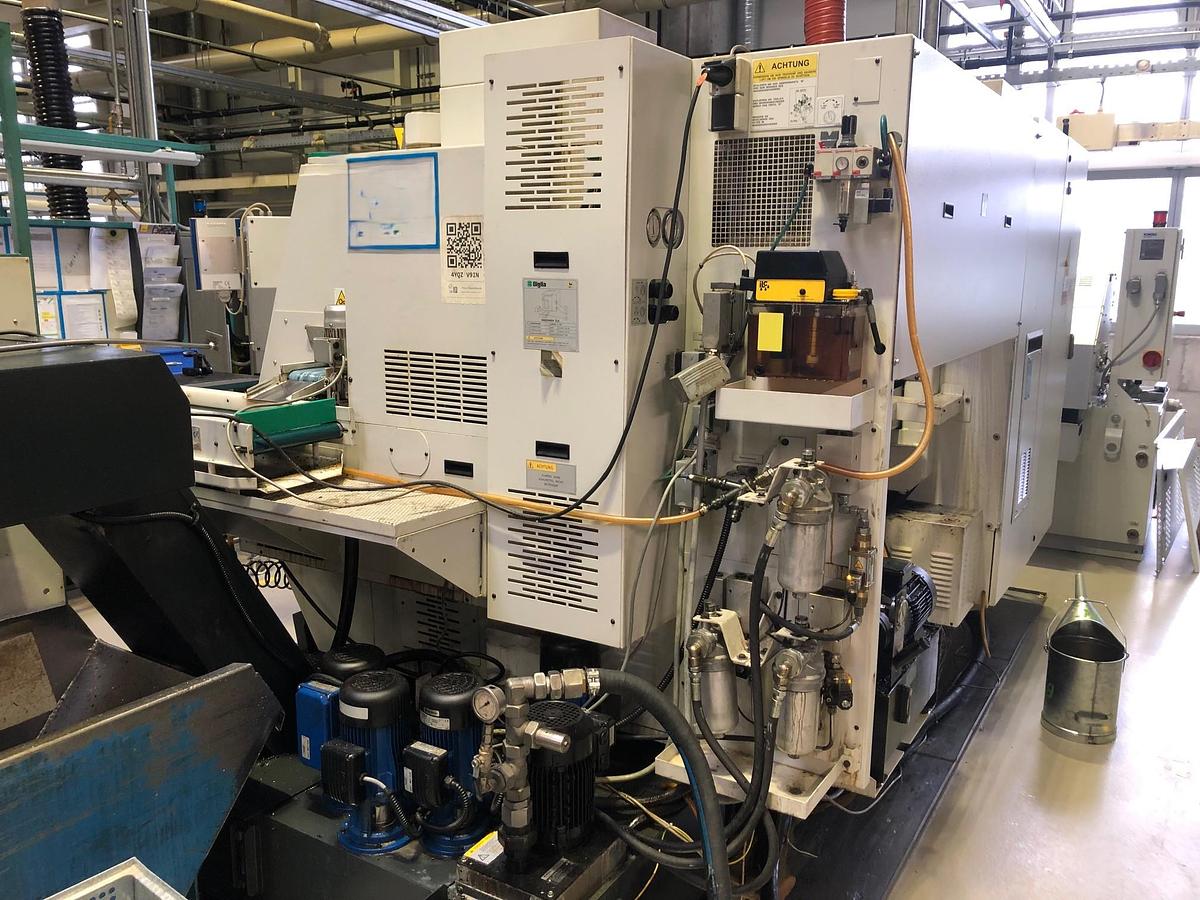

coolant of 450 liters and includes additional pumps for the high-pressure cooling system.

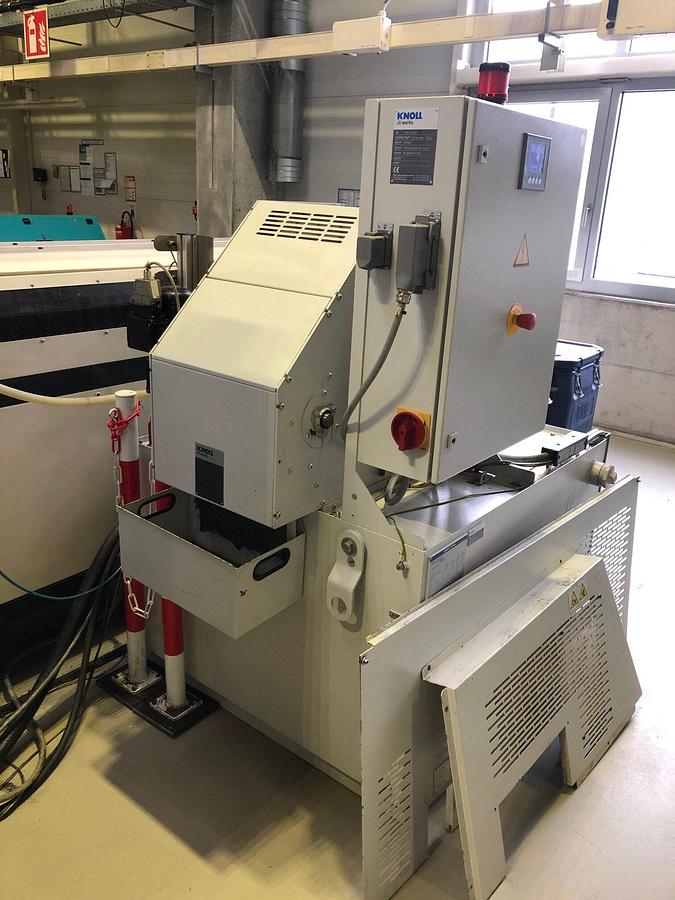

Among the included accessories there is a Knoll high-pressure system, a transfer pump, Haimbuch pin holder for the
main spindle and tailstock, motorized chucks, and fixed tool holders. The overall dimensions, including

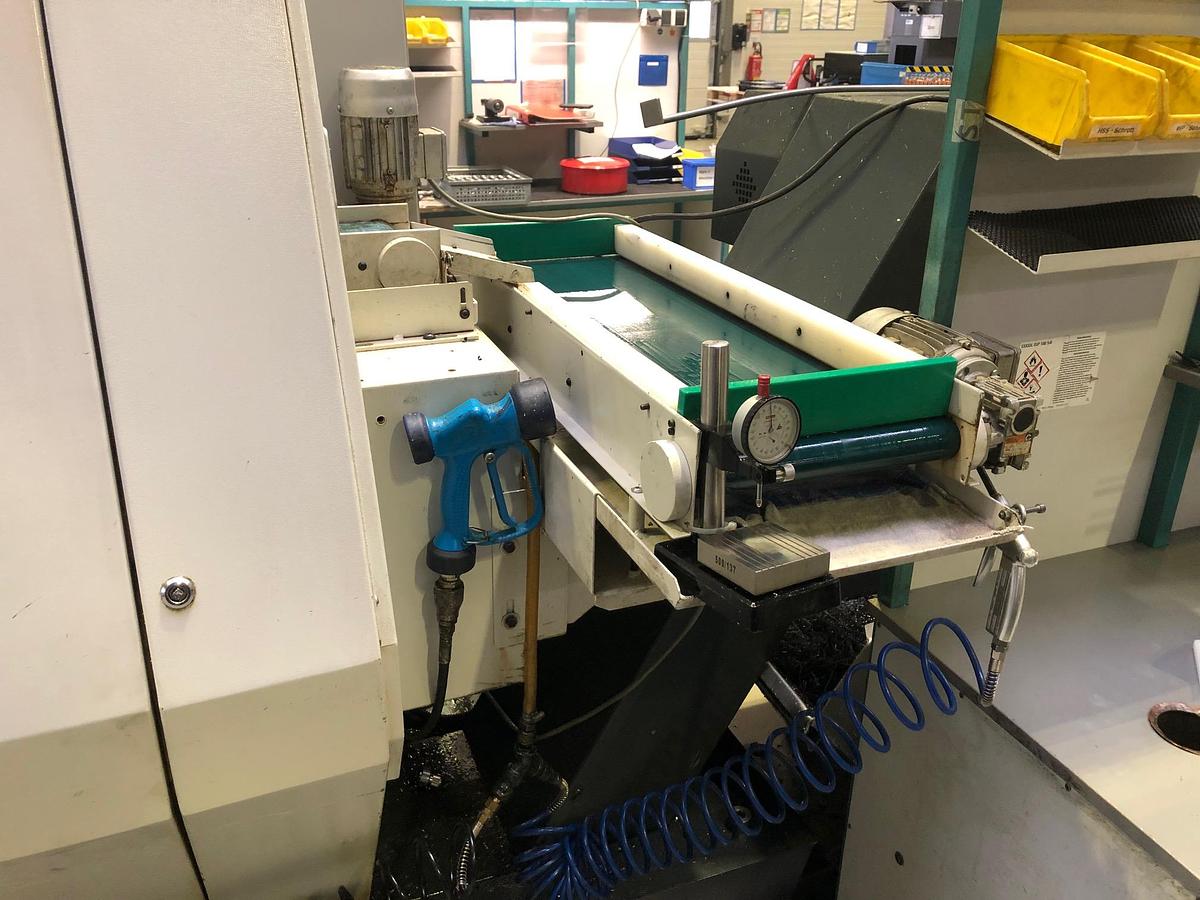

the chip evacuator, dimensions 5033 x 2100 x 2458 mm, with a weight of 8200 kg. This lathe represents a solution
robust and versatile for advanced production needs.
Specifications
| Manufacturer | BIGLIA |
| Model | B 446 T3-Y2 |
| Year | 2014 |
| Condition | Used |
| Stock Number | 00015 |
| CNC: | FANUC Series 31i – MODEL B |
| Max. workable diameter from bar | mm 51 |
| Max. workable length | 230 mm |
| Main spindle speed Max. | rpm 5000 |
| MAIN SPINDLE NOSE | ASA 5" |
| Spindle hole | mm 59.5 |
| Bearing inner diameter | 90 mm |
| Motor power | kW 15 |
| Counterproof Maximum rotation speed | rpm 5000 |
| Spindle nose counterhead | ASA 5" |
| Spindle hole diameter | mm 55 |
| Useful through hole | mm 45 |
| Inner diameter of bearings. | 90 mm |
| Counter-head spindle motor power | kW 11 |
| UPPER SCREW/PLATE | SINISTRA 1 |
| TOP SCREW | DESTRA 2 |
| LOWER SCREW | 3 |
| Number of positions | 12 |
| Rotation speed | RPM 4,000 |
| Powered motors | Kw 3.7 |
| Rotation time (1 stage) | sec 0.15 |
| Max. Y axis travel | mm 90(-40/+50) |
| COOLANT | Tank capacity l 450 |
| Total pump power | kW 4.8 |
| DIMENSIONS - WEIGHT | Footprint with chip evacuator mm 5033 x 2100 x 2458 h |
| Weight with chip conveyor | kg 8200 |
| ACCESSORI INCLUDED: | • Supplementary pump for refrigerant pressure (7 bar) complete with cartridge filter • No. 3 supplementary high-pressure refrigerant pumps (7 bar) complete with cartridge filter • Pump No. 1 transfer pump for external 700-liter tank • No. 1 high-pressure plant Knoll model KF110/700 (separate filtration system with 700-liter tank and high-pressure plant of 70 Bar) • Gun for machine washing at end of work • SBS software – tool wear monitoring • Manual guide • No. 1 Haimbuch collet holder for main spindle • No. 1 Haimbuch collet holder for counter-spindle • No. 3 motorized collets • No. 10 fixed tool holders |
