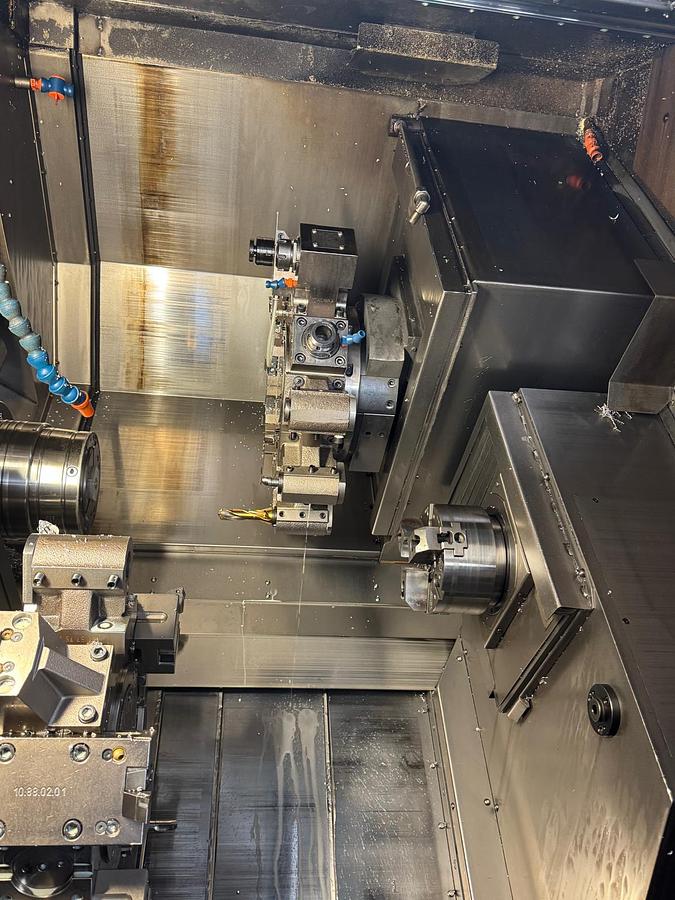

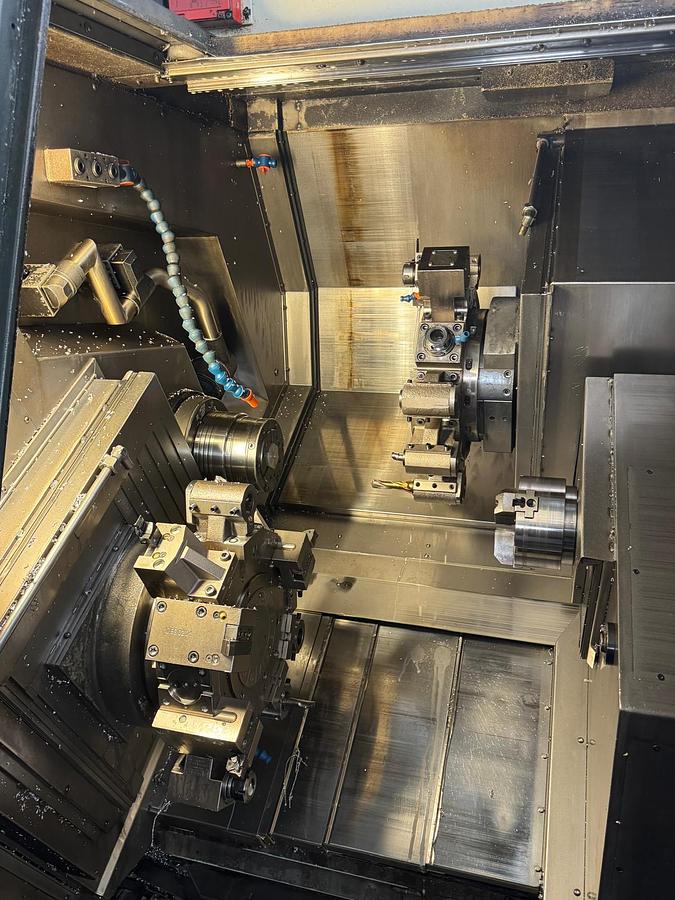

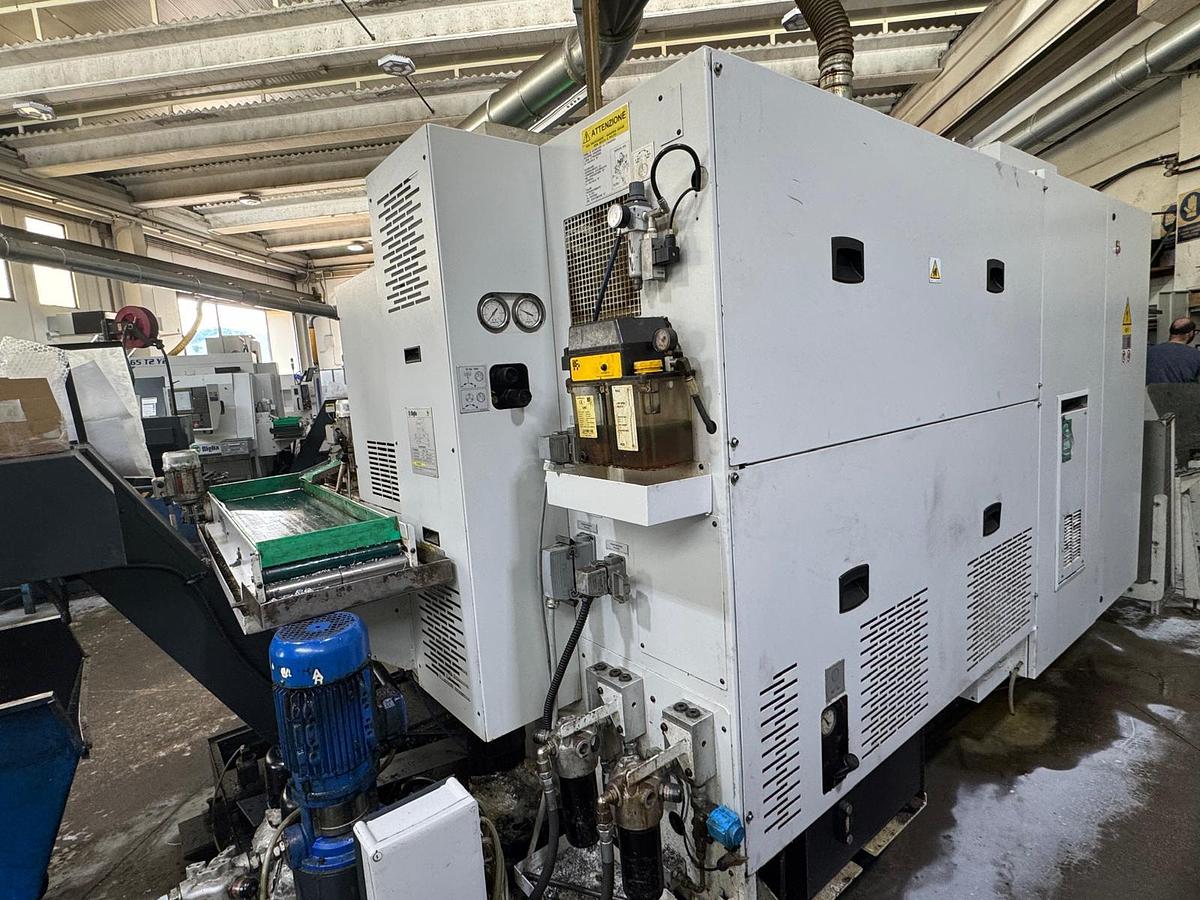

2014 BIGLIA B 465 LY
2014 BIGLIA B 465 LY
Contact us for price
Location:Urgnano, Italy
or
Call +39 035 – 0392235
Specifications
| Manufacturer | BIGLIA |
| Model | B 465 LY |
| Year | 2014 |
| Condition | Used |
| Stock Number | 00013 |

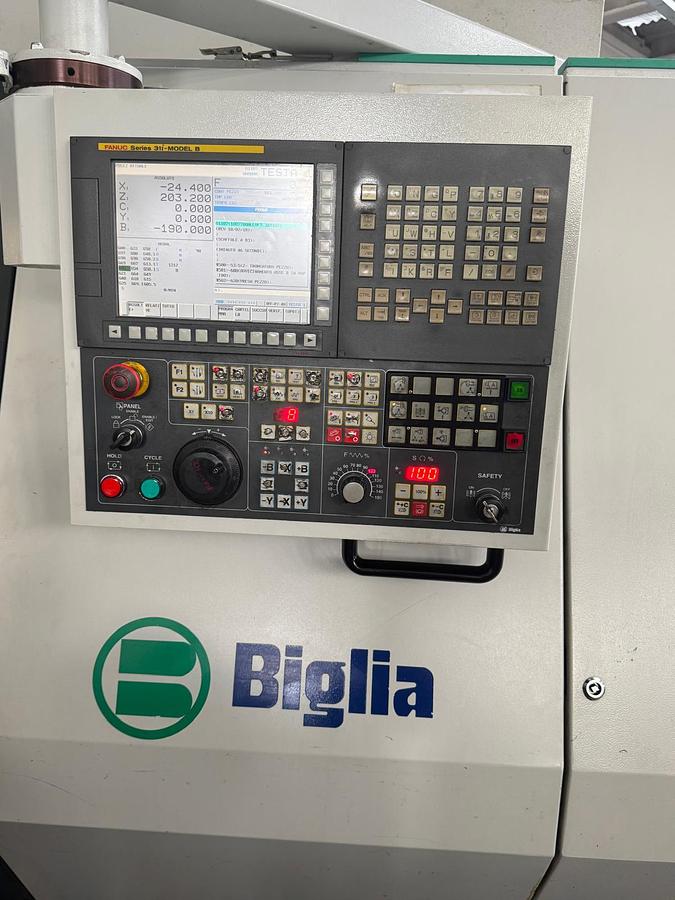

| CNC: | GE Fanuc Series 31i- MODEL B |
| Max. workable diameter from bar | mm 71 ASA 6 |
| Max. workable length | 250 mm |
| MAIN SPINDLE | |
| Max rotation speed | 4000 rpm |
| Main spindle nose | asa 6 |
| Main spindle motor power | kW 20 |
| Max. rotation speed | rpm 5000 |
| Spindle nose counterhead | Asa 5 |
| Spindle hole | mm 55 |
| Useful through hole | mm 45 |
| Counter-head spindle motor power | kW 7.5/11 |
| Offset stroke | 120 mm |
| Number of positions | 12 |
| maximum rotation speed | rpm 4000 |
| Motor power of motorized tools | kW 3.7 |
| MAIN SPINDLE NOSE | asa 6 |
| Y-axis | rapid race 100-6 |
| Overall dimensions with chip conveyor | mm 4150 x 2100 x 2200 h |
| Weight with carrier | 6800 kg |

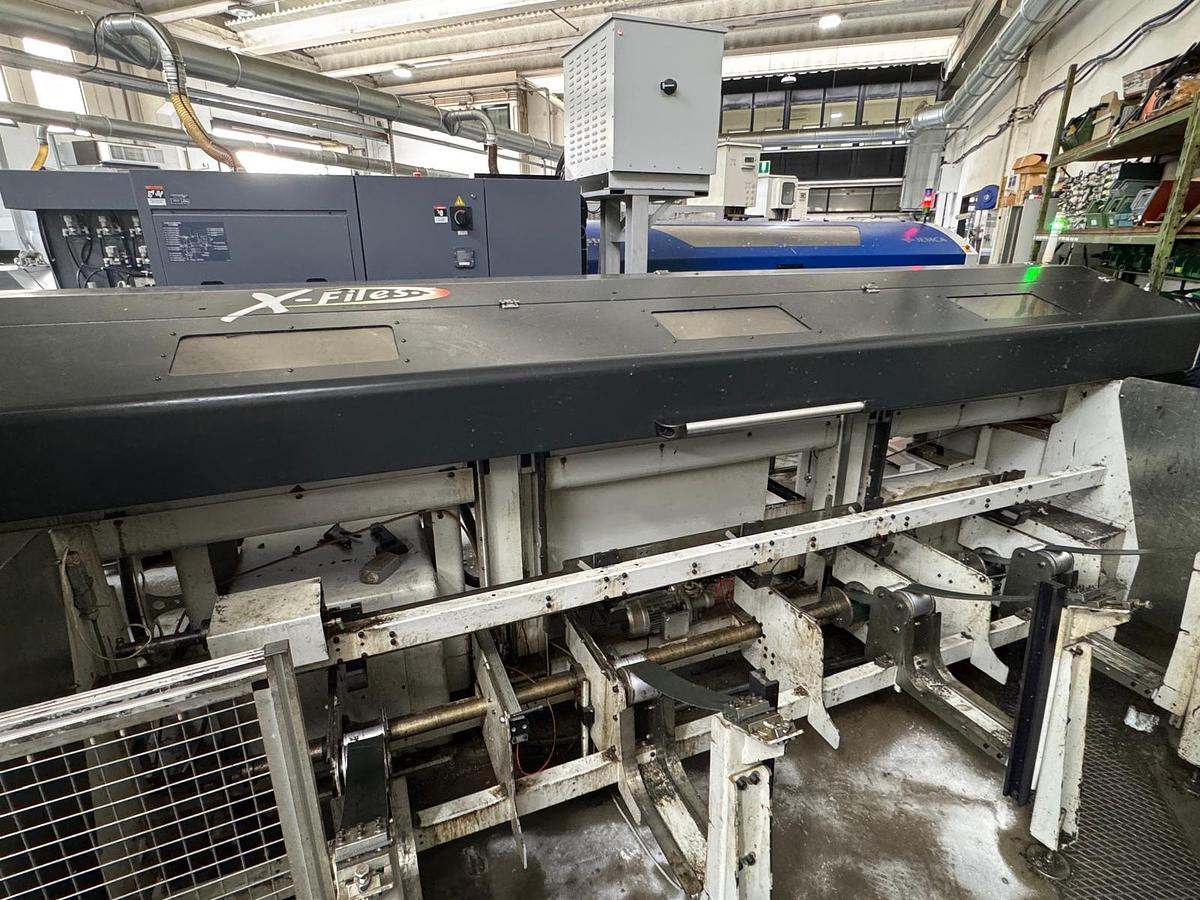

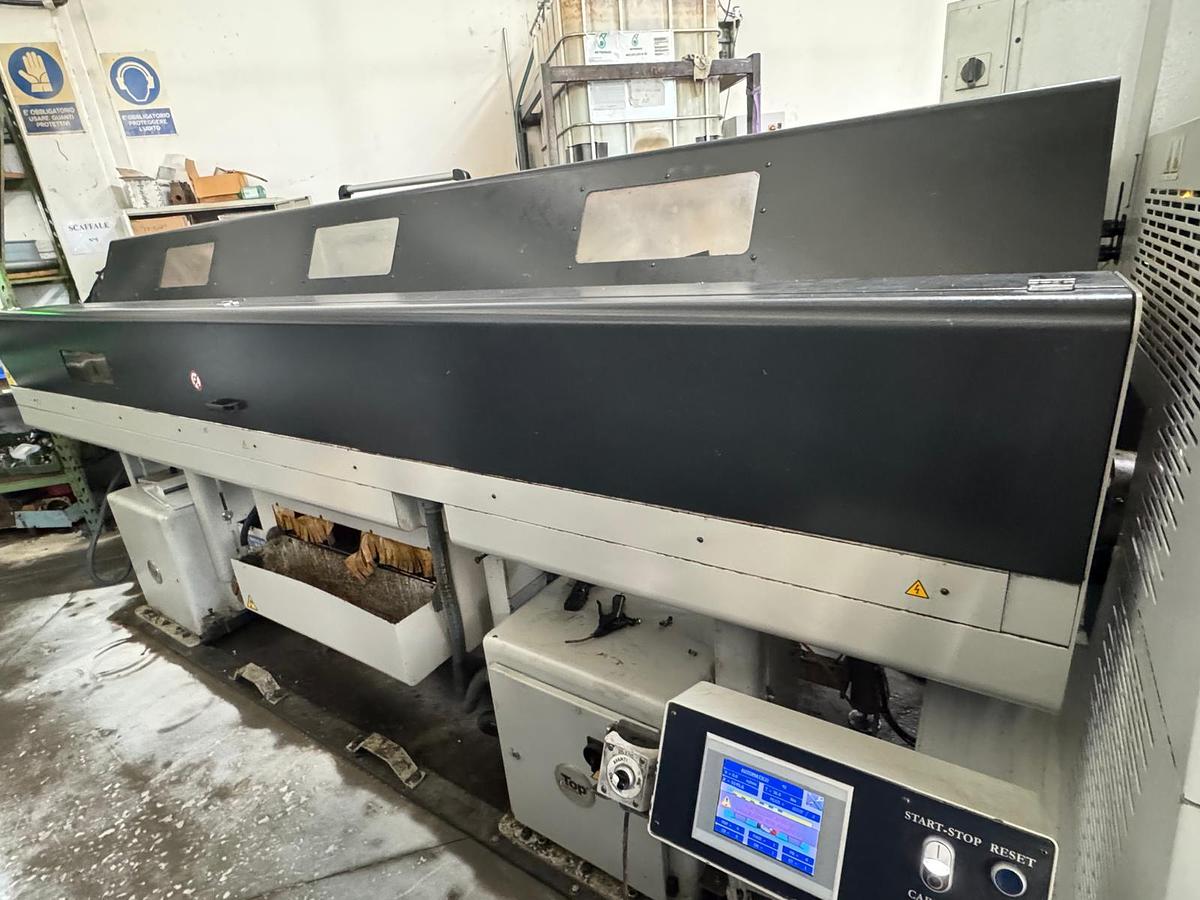

| ACCESSORIES INCLUDED | No. 1 USED HAINBUCH MAIN SPINDLE COLLET HOLDER • No. 1 USED HAINBUCH COUNTER-SPINDLE COLLET HOLDER • No. 4 USED MOTORIZED TOOL HOLDERS (2 AXIAL AND 2 RADIAL) • No. 10 USED FIXED TOOL HOLDERS • No. 1 DOUBLE-HEAD ELECTRONIC PROBE • TOOL EFFORT MONITORING • No. 1 LOWARA PUMP FOR HIGH PRESSURE 18 BAR • No. 3 LOWARA PUMPS FOR LOW PRESSURE No. 1 TOP AUTOMAZIONI X-FILES 370 BUNDLE BAR LOADER |
